alpha Value Line
LPB+
Planetary gearbox

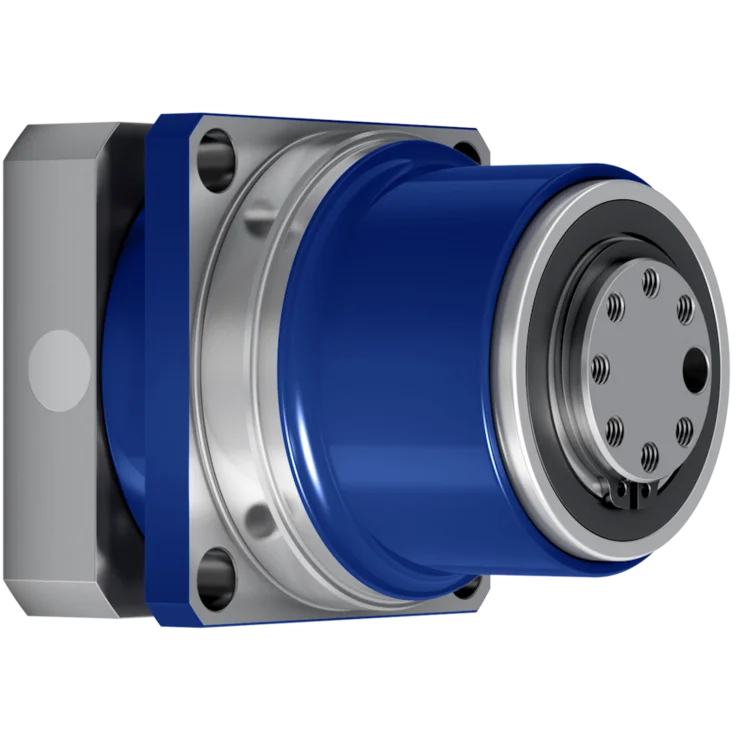

The low backlash LPB+ planetary gearbox combines high manufacturing quality with cost-effective precision. Thanks to its output flange or optional belt pulley, it is ideal for compact belt-driven applications with limited installation space.
3 – 100
Ratio
37 – 305 Nm
Max. torque
≤ 8 arcmin
Backlash
Universally applicable
The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries
High cost-effectiveness
Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency
Compact design
The LPB+ planetary gearbox features a highly compact design – and, thanks to its optional belt pulley, is ideal for integration into linear modules
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 LPB+ Brochure The compact solution for linear drives | Brochure /Catalog | American English | |
 alpha Value Line Technical documents LP+ / LPB+ | Operating manual | Neutral |
The compact solution for linear drives
Further information

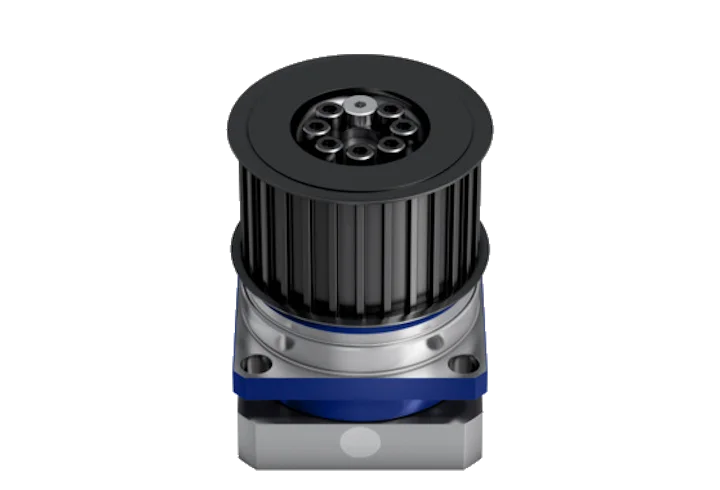

The LPB+ with toothed belt pulley. Optimized for all types of belt applications and space-saving thanks to its integrated pulley solution. Without the belt pulley, it is suitable for use as a compact add-on or wheel hub drive.
The PLPB+ toothed belt pulley is not included in the scope of delivery and must be ordered separately along with the gearbox.
