alpha Advanced Line

VS+

Worm gearboxes

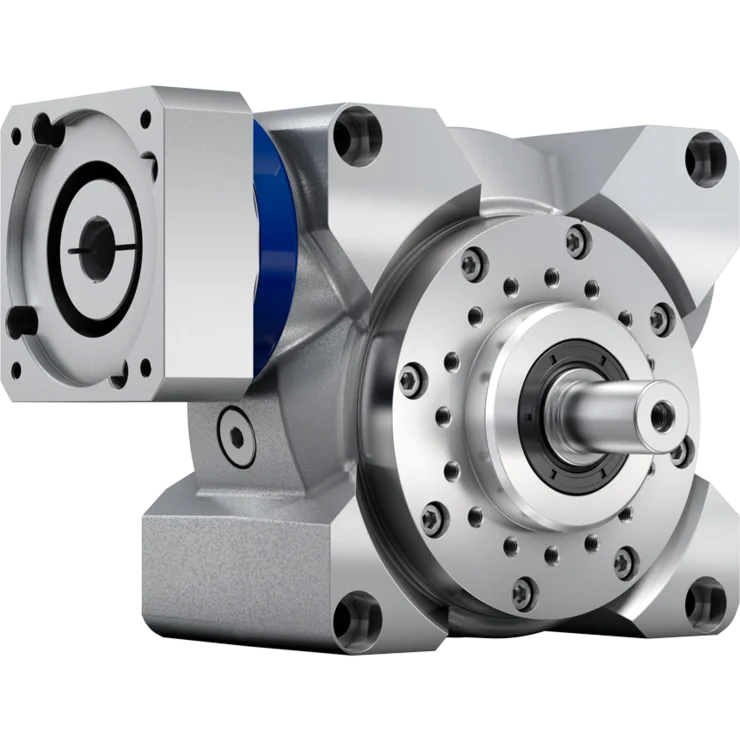

Servo worm gearbox with consistently high positioning accuracy. The VS+ gearbox from the V-Drive family delivers consistently precise performance. Thanks to the consistently low torsional backlash over the entire service life, it offers consistently high quality and excellent positioning accuracy – perfect for demanding automation tasks

4 – 400

Ratio

165 – 1505 Nm

Max. torque

≤ 2 – 3 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
High performance

Particularly in applications with high axial and radial forces

No stick-slip effect

Thanks to the precisely designed hollow flank toothing, there is no stick-slip effect with the VS+ gearbox. This ensures smooth movement sequences – particularly advantageous for slow or precise positioning movements

High flexibility

In addition to the solid shaft output form, the VS+ is also available in a corrosion-resistant design

Technical details

Product typeVS+
DesignMF
Ratio4 – 400
Number of sizes4
Max. backlash c)jt≤ 2 – 3 arcmin
Max. torqueT2α165 – 1505 Nm
Max. input speedn1Max6000 rpm
Torsional rigidityCt21153 Nm/arcmin
Max. tilting momentM2KMax3059 Nm
c) In relation to reference sizes
Output shape
Smooth shaft✓
Shaft with key d)✓
Splined shaft (DIN 5480)✓
Output on both sides✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication✓
Corrosion-resistant✓
System solutions
Linear system (rack / pinion)
Accessory (for more information, see the relevant product pages)
Coupling✓
d) Performance reduction: For detailed sizing, please use our cymex® design software
Document name Document type Language Downloads
SP+, TP+, HG+, SK+, SPK+, TK+, TPK+, SC+, SPC+, TPC+, VH+, VS+, VT+, DP+, HDP+

Catalog alpha Advanced Line

SP+, TP+, HG+, SK+, SPK+, TK+, TPK+, SC+, SPC+, TPC+, VH+, VS+, VT+, DP+, HDP+

 Brochure /Catalog American English
Download (23 KB) Open in viewer
VH+, VS+, VT+

Technical data / Dimension sheets VH+ / VS+ / VT+

VH+, VS+, VT+

 Brochure /Catalog Neutral
Download (2 KB) Open in viewer
Technical documents V-Drive Advanced / Value / Basic

alpha Advanced Line / alpha Value Line / alpha Basic Line

Technical documents V-Drive Advanced / Value / Basic

 Operating manual Neutral
Download (4 KB) Open in viewer

Sealing Plate

Operating manual Neutral
Download (121 B) Open in viewer

Ordering code / CAD data VS+

 CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Powerful torque but quiet running

Metal bellows coupling on the input
Absolute backlash-free – for precise power transmission
Lifetime durability & maintenance-free – for long-term reliability without maintenance
Thermal length compensation – protects the motor from damage.
Radial shaft seal
Very long service life
Optimized for continuous operation
Input bearing
Bearing package for absorbing axial and radial forces
Very well suited for high input speeds
Output bearing
High overload capacity for absorbing axial and radial forces
Hollow flank toothing
Stick-slip-free: Smooth movement without jerking – ideal for precise positioning.
Efficient: High efficiency thanks to reduced friction in the tooth engagement.
Compact & powerful: High power density with minimal installation space.

Further Information

Advanced Linear System with VS+

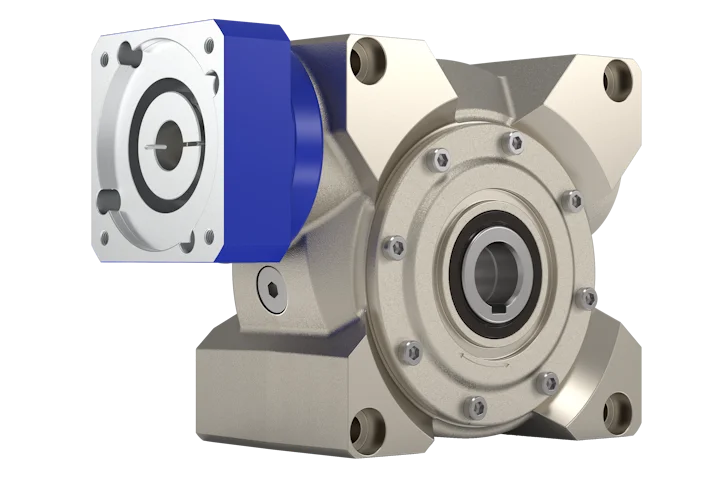

Corrosion resistant design

cynapse® & smart services

Accessory

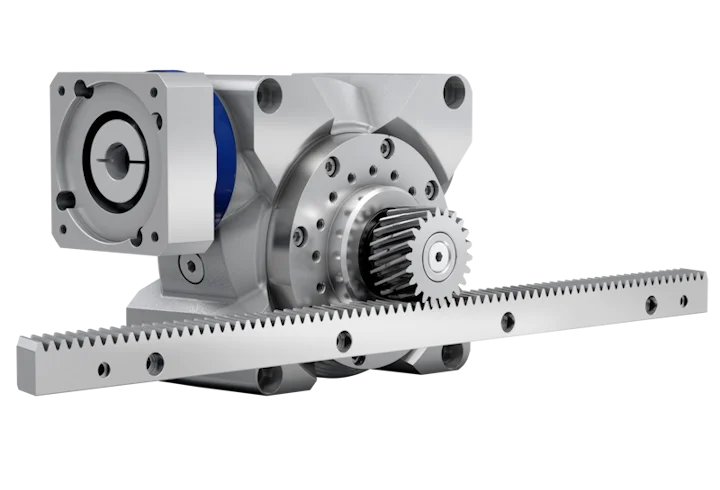

The VS+ for perfectly matched rack and pinion systems for mid-level to high demands. Typical areas of application include wood, plastic, and composite processing in machining centers or automation.
