Worm gearboxes

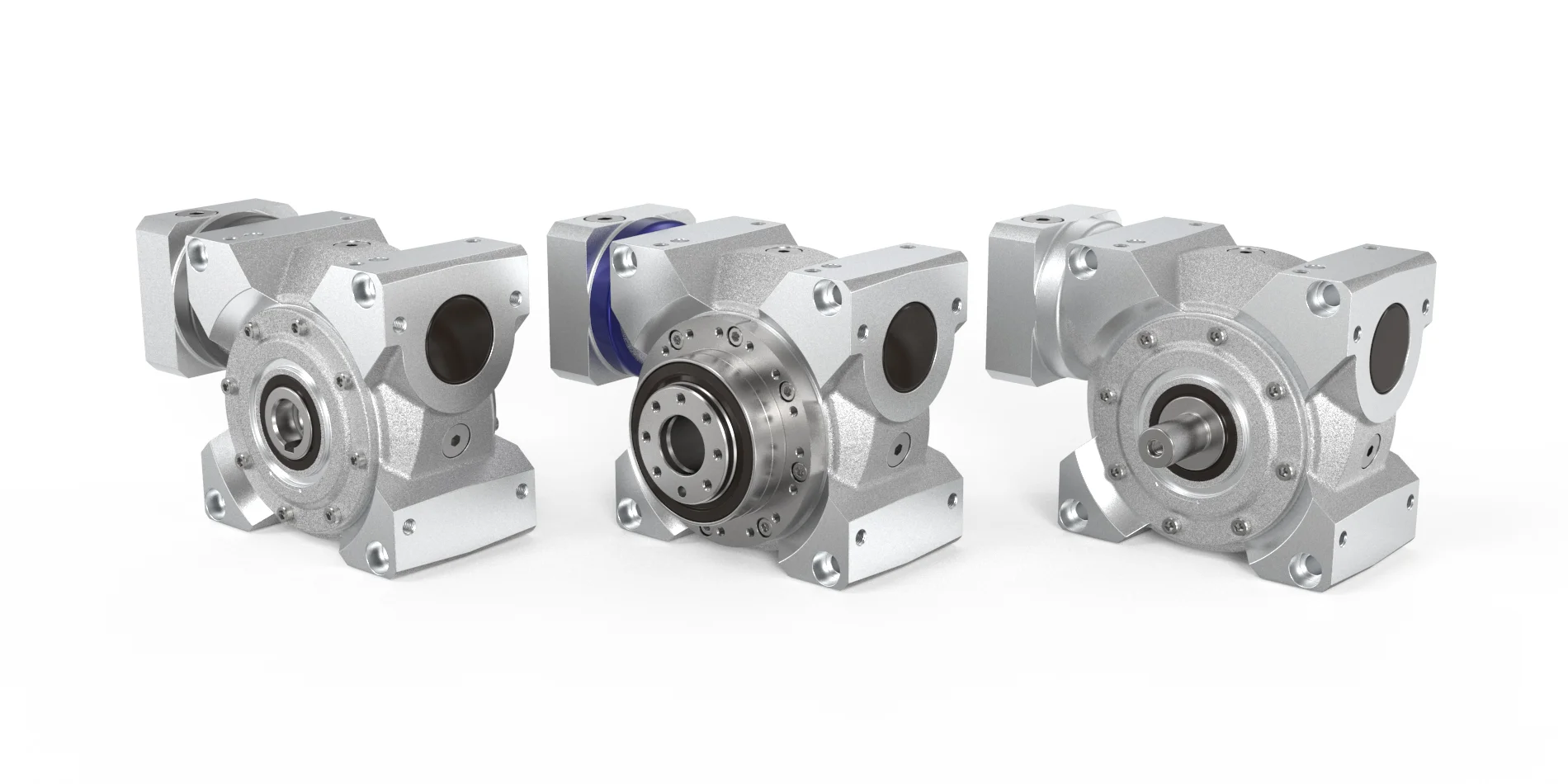

V-Drive servo worm gearboxes impress with their high performance in the smallest of spaces.
Worm gearboxes
alpha Advanced Line
- Ratio
- 4 – 400
- Max. torque
- 165 – 1505 Nm
- Backlash
- ≤ 2 – 3 arcmin
Worm gearbox with flange output and solid hollow shaft
alpha Advanced Line
- Ratio
- 4 – 400
- Max. torque
- 74 – 1505 Nm
- Backlash
- ≤ 2 – 3 arcmin
Worm gearbox with hollow shaft interface
alpha Advanced Line
- Ratio
- 4 – 400
- Max. torque
- 165 – 1505 Nm
- Backlash
- ≤ 2 – 3 arcmin
Worm gearbox with output shaft
alpha Value Line
- Ratio
- 4 – 400
- Max. torque
- 74 – 365 Nm
- Backlash
- ≤ 6 arcmin
Worm gearbox with hollow shaft interface
alpha Value Line
- Ratio
- 4 – 400
- Max. torque
- 74 – 365 Nm
- Backlash
- ≤ 6 arcmin
Worm gearbox with output shaft
alpha Basic Line
- Ratio
- 7 – 40
- Max. torque
- 68 – 301 Nm
- Backlash
- ≤ 15 arcmin
Worm gearbox with hollow shaft interface
alpha Basic Line
- Ratio
- 7 – 40
- Max. torque
- 68 – 301 Nm
- Backlash
- ≤ 15 arcmin
Worm gearbox with output shaft
Which product is right for your application?
With our sizing tools, ranging from quick sizing to detailed calculation, you can quickly and reliably find the right product.
V-Drive servo worm gears – whether used as quiet endurance runners, flexible powerhouses, or economical all-rounders – score points with their outstanding performance.
Compact worm gearboxes with maximum performance
Our worm gearboxes combine space-saving design with outstanding performance. Whether low-backlash with <2 arc minutes or with integrated hollow shaft for flexible designs – WITTENSTEIN offers a wide range of solutions for demanding applications.
Smooth functionality
Perfectly sized for continuous operation – top quality from WITTENSTEIN
Low noise over the entire service life
Our servo worm gearboxes are characterized by high synchronism and low operating noise. This reduces vibrations in the machine.
Maximum cost-effectiveness
Highest cost-effectiveness over a total operating time of more than 20,000 hours.
Best-in-class precision
Accuracy of up to <2 angular minutes over the entire service life.
Worm gearbox with reduced backlash & hollow shaft
WITTENSTEIN worm gearboxes offer first-class performance in the smallest of spaces. Thanks to their low-backlash version and precise gearing technology, our worm gearboxes achieve an accuracy of up to <2 angular minutes – consistently over their entire service life. Our product range includes hollow shaft variants that allow cables or shafts to be easily routed through.
Whether you need a low-backlash worm gearbox for high-precision applications or a worm gearbox with a hollow shaft for flexible integration, V-Drive solutions offer maximum smooth running, reliability, and efficiency in a compact design.
