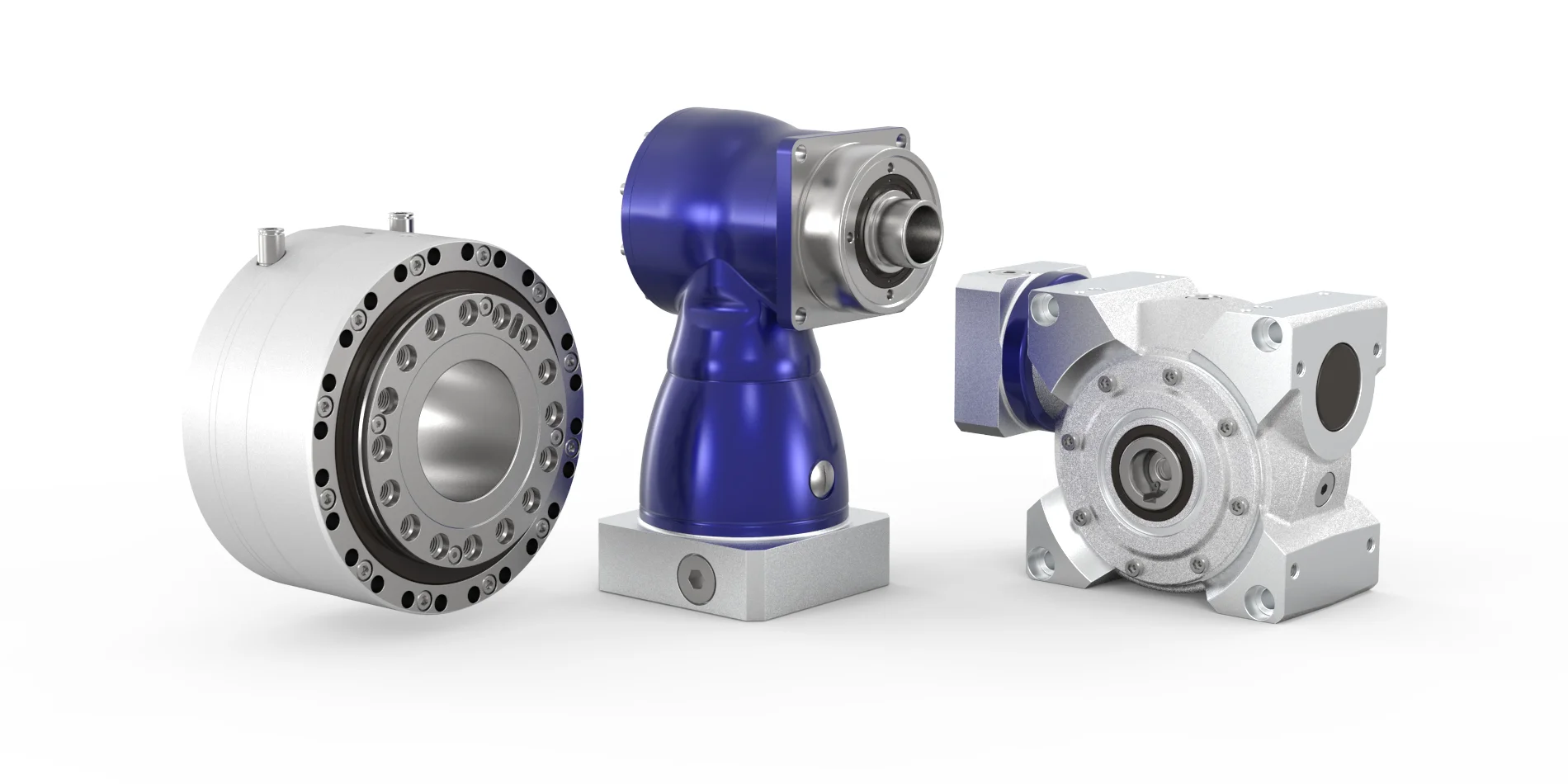

Hollow shaft gearboxes
The enlarged hollow shaft allows supply lines, shafts, or cables for further drive systems to be routed through it. High positioning accuracy guarantees stable machine characteristics.
Hollow shaft gearboxes
- Ratio
- 24 – 31
- Max. torque
- 350 – 6000 Nm
- Backlash
- 0 arcmin
The Galaxie® GS sets new standards in precision and hollow shaft size
- Ratio
- 72 – 240
- Max. torque
- 1086 – 4050 Nm
- Backlash
- 0 arcmin
The Galaxie® GH offers unbeatable performance characteristics
- Ratio
- 60 – 61
- Max. torque
- 150 – 250 Nm
- Backlash
- 0 arcmin
The miniaturized Galaxie® – with maximum torsional rigidity, zero backlash and the largest hollow…
alpha Basic Line
- Ratio
- 7 – 40
- Max. torque
- 68 – 301 Nm
- Backlash
- ≤ 15 arcmin
Worm gearbox with hollow shaft interface
alpha Value Line
- Ratio
- 4 – 400
- Max. torque
- 74 – 365 Nm
- Backlash
- ≤ 6 arcmin
Worm gearbox with hollow shaft interface
alpha Advanced Line
- Ratio
- 4 – 400
- Max. torque
- 74 – 1505 Nm
- Backlash
- ≤ 2 – 3 arcmin
Worm gearbox with hollow shaft interface
alpha Advanced Line
- Ratio
- 3 – 100
- Max. torque
- 20 – 768 Nm
- Backlash
- ≤ 4 arcmin
Hypoid gearbox with hollow shaft and output flange
alpha Advanced Line
- Ratio
- 3 – 100
- Max. torque
- 20 – 768 Nm
- Backlash
- ≤ 4 arcmin
Wide range of hypoid gearboxes with hollow shaft
Which product is right for your application?
With our sizing tools, ranging from quick sizing to detailed calculation, you can quickly and reliably find the right product.
The hollow shaft combines high functionality with design efficiency—it not only creates space, but also saves weight at the same time.
Flexible hollow shaft gearboxes for modern machine concepts
WITTENSTEIN hollow shaft drives feature a particularly large hollow shaft, enabling new drive shaft designs.
Largest hollow shaft
WITTENSTEIN galaxie drive solutions in particular offer the largest hollow shaft diameters available in the field of high-performance precision drives.
Space savers
The generous interior space allows cables, media lines, or even additional shafts to be routed through the drive for maximum space efficiency and compact machine designs.
Wide variety
Whether as right angle drives or coaxial gearboxes, WITTENSTEIN's hollow shaft solutions offer tailor-made solutions for a wide variety of applications.
Smart applications
Hollow shaft solutions offer clear advantages in precision robotics, machine tool construction, and the packaging industry—anywhere where compact design and high power density are required.
Hollow shaft gearboxes for compact axle architectures
Our hollow shaft gearboxes combine high precision with maximum use of installation space. Thanks to the integrated hollow shaft, supply lines and mechanical elements can be routed through the gearbox in a space-saving manner – for particularly compact machine designs. Whether as a hollow shaft drive or a hollow shaft right angle gearbox: WITTENSTEIN offers modular solutions for maximum flexibility.
The wide variety of variants and the option for customization make our hollow shaft gearboxes the ideal choice for future-oriented applications in automation, robotics, or packaging technology. Take advantage of the hollow shaft for integration, weight savings, and increased efficiency.
