alpha Advanced Line

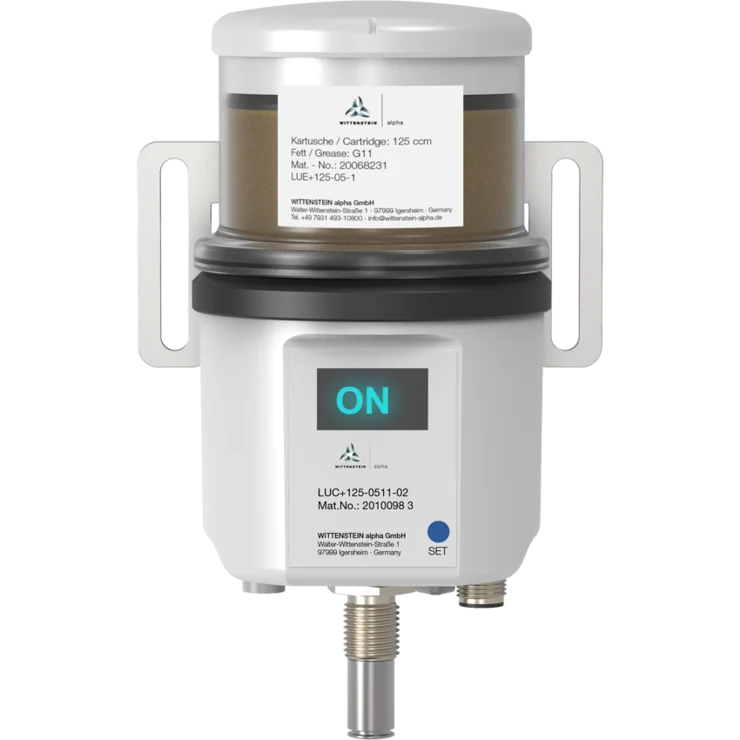

LUC⁺125 lubricator

Name: LUC+125 lubricator
Brand: WITTENSTEIN group

To maximize machine service lives you need proper lubrication. The LUC⁺125 lubricator supplies the lubrication points with a precise quantity of lubricant, depending on your requirements.

• Minimum quantity lubrication
• Various control options:
• Pulse control – 24 V
• Time control – 24 V (optionally with battery)
• Replaceable cartridges

Ideal for use with a splitter, progressive distributor and lubrication pinion.

125 cm³

Filling quantity

1

Number of outlets

24 V

Operating voltage

Flexible

Supplies up to 8 lubrication points with progressive distributors and lubricants tailored to your application

Integrability

Fully integrable into the machine control system with pulse control and 24 V power supply

	LUC⁺125 lubricator
Weight ¹⁾	660 g
Lubricant volume	125 cm³
Lubricant	WITTENSTEIN alpha G11, G12, G13
Functional principle	Piston pump
Maximum pressure	50 bar
Dispensing volume / stroke ²⁾	0.15 cm³
Number of outlets	1
Outlet	Straight hose connection 6 mm ³⁾
Max. number of lubrication points with splitter / progressive distributor	4 / 8
Operating voltage	24 V DC
Power consumption	300 mA
Fuse protection	1 A slow-blow fuse
Protection class	IP 54
Operating temperature ⁴⁾	0 °C to +60 °C
Control system	Microelectronic
Pressure monitoring	Integrated, electronic
Fill level monitoring	Integrated, electronic
Communication interface	Plug, M12x1, 4-pin
Mounting position	Vertically
¹⁾ Depending on the design
²⁾ 24 V, time-controlled: 1 - 36 months; number of strokes per lubricating cycle can be adjusted 24 V, pulse controlled: Lubricating strokes controlled by 2 s pulse signal
³⁾ Connection thread on the lubricator M6x1 internal thread and G1/4 external thread
⁴⁾Depending on the lubricant used
