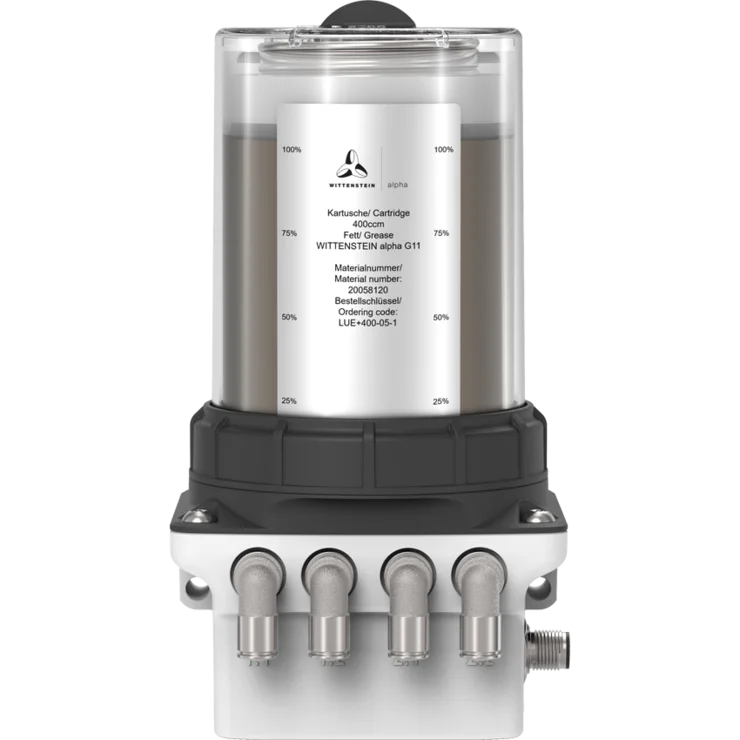

LUC⁺400 lubricator

Name: LUC+400 lubricator
Brand: WITTENSTEIN group

To maximize machine service lives you need proper lubrication. The LUC⁺400 lubricator supplies the lubrication points with a precise quantity of lubricant, depending on your requirements.

• Fully integrable into the machine control system with pulse control and 24 V power supply
• Use of replaceable cartridges.

Designed for use with a splitter, progressive distributor and lubrication pinion.

400 cm³

Filling quantity

1, 2, 3, 4

Number of outlets

24 V

Operating voltage

Flexible

Supplies up to 32 lubrication points with progressive distributors and lubricants tailored to your application

Integrability

Fully integrable into the machine control system with pulse control and 24 V power supply

	LUC⁺400 lubricator
Weight ¹⁾	1700 g
Lubricant volume	400 cm³
Lubricant	WITTENSTEIN alpha G11, G12, G13
Functional principle	Piston pump
Maximum pressure	70 bar
Dispensing volume / stroke	0.15 cm³
Number of outlets	1, 2, 3, 4
Outlet	Rotatable right-angled hose connections 6 mm
Max. number of lubrication points with splitter / progressive distributor	4 / 8 per outlet
Operating voltage	24 V DC
Power consumption	I_max 300 mA (I_Ruhe 25 mA)
Fuse protection	750 mA (slow-blow fuse)
Protection class	IP 54
Operating temperature ⁴⁾	0 °C to +60 °C
Control system	Integrated, microelectronic
Pressure monitoring	Integrated, electronic (system pressure measurement)
Fill level monitoring	Integrated, reed contact
Communication interface	Plug, M12x1, 4-pin
Mounting position	Vertical or horizontal
¹⁾ Depending on the design
⁴⁾Depending on the lubricant used
