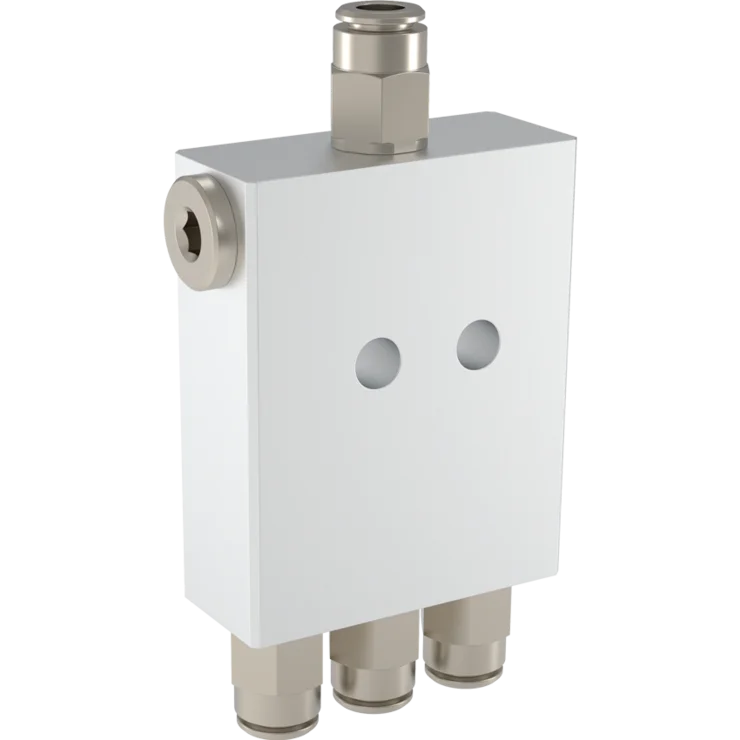

LUS splitter
Distribution systems
Distribution systems are used to distribute the lubricant supplied by the lubricator to a number of lubrication points. As a result, complete machines can be supplied centrally via one lubricator. Depending on the requirements regarding the distribution system, splitters or progressive distributors can be used.
2, 3, 4
Number of outlets
10°C - 60°C
Operating temperature (depending on the lubricant used)
Straight, 6 mm
Hose connection
Functional
Simple solution for distribution of the lubricant to several lubrication points
Variable
Suitable for use with all standard lubricants from WITTENSTEIN alpha
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 alpha Linear Systems Catalog Premium Linear SystemAdvanced Linear SystemValue Linear System | Brochure /Catalog | American English | |
 alpha Premium Line / alpha Advanced Line / alpha Value Line Technical documents alpha rack and pinion system | Operating manual | Neutral |
