alpha Premium Line

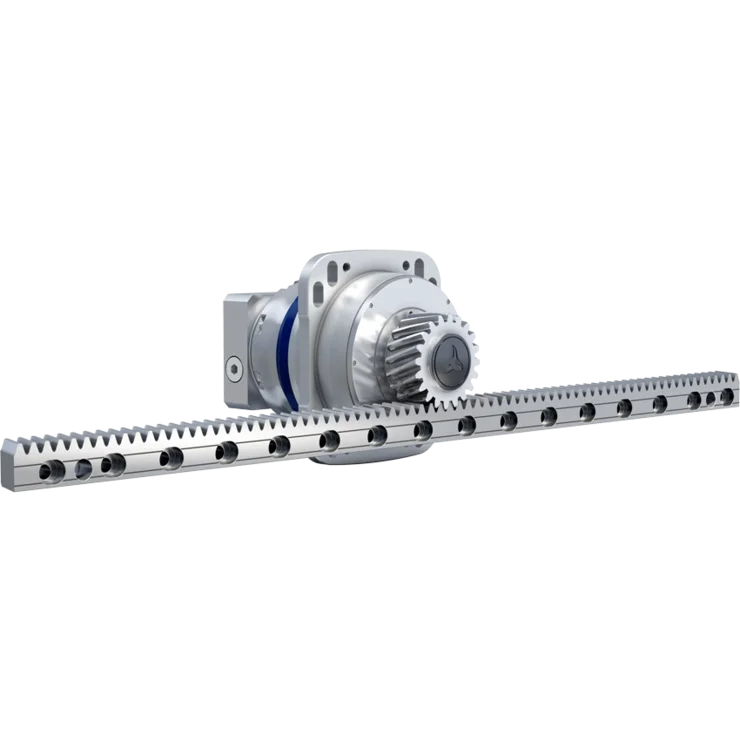

Premium Linear Systems

Name: Premium Linear Systems
Brand: WITTENSTEIN group

Rack and pinion system

The Premium Linear Systems are specially designed for applications with high to very high demands on smooth running, positioning accuracy and feed force. They offer maximum drive power density and maximum overall linear rigidity. The same applies to extreme precision – both in the individual drive and in master-slave configuration for the highest possible degree of freedom in the design. The downsizing option also offers potential savings in the drive train. Possible use in laser machines, CNC machining centers for wood, plastics and composites, cutting machine tools, e.g. HSC milling machines and in highly dynamic and precise handling applications.

5.45 – 112 kN

Max. feed force

91 – 333 m/min

Max. feed velocity

≥ 30 µm

Positioning accuracy (single drive)

Individual

Large configuration space consisting of gearbox, pinion and racks and accessories

Smart features

Optionally available with INIRA^® and R-flange

Perfectly matched

Perfectly matched components ensure best-possible smooth running, positioning accuracy and feed force

Premium Linear System — XP⁺	Max. feed force [N]	Max. velocity [m/min]
PLS 5	5450	333
PLS 8	8350	244
PLS 11	10700	333

Premium Linear System — RP⁺	Max. feed force [N]	Max. velocity [m/min]
PLS 20	20300	250
PLS 22	22200	104
PLS 36	36100	112
PLS 47	47200	135
PLS 75	75000	91
PLS 112	112000	111
Feed force and feed velocity depend on gear ratio.

The Premium Linear System is also available with RPK⁺, RPC⁺, XPK⁺, XPC⁺ right-angle gearboxes and the RPM⁺ actuator version. The system is optionally available with innovative rack and pinion mounting.

Document name	Document type	Language	Downloads
alpha Linear Systems Catalog Premium Linear SystemAdvanced Linear SystemValue Linear System	Brochure /Catalog	American English	Download (20 KB) Open in viewer
Flyer alpha Linear Systems - Racks WITTENSTEIN alpha in all axes - now with 2 meter racks	Brochure /Catalog	Neutral	Download (2 KB) Open in viewer
INIRA^® rack assembly WITTENSTEIN alpha in all axes - now with 2 meter racks	Brochure /Catalog	Neutral	Download (4 KB) Open in viewer
Technical data / Dimension sheets alpha Premium Linear Systems Premium Linear Systems from WITTENSTEIN alpha - Perfection in the application	Brochure /Catalog	Neutral	Download (4 KB) Open in viewer
alpha Premium Line / alpha Advanced Line Assembly instructions INIRA^®	Operating manual	Neutral	Download (3 KB) Open in viewer
alpha Premium Line / alpha Advanced Line / alpha Value Line Technical documents alpha rack and pinion system	Operating manual	Neutral	Download (3 KB) Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300

To the contact form

The R-flange sets the standard

INIRA^®: the revolution in rack mounting

Future-proof automation with cynapse^®

The R-flange is available as an option for the XP⁺. The slotted holes integrated into the gearbox flange allow easy adjustment of the gearbox with the pinion mounted on the rack.

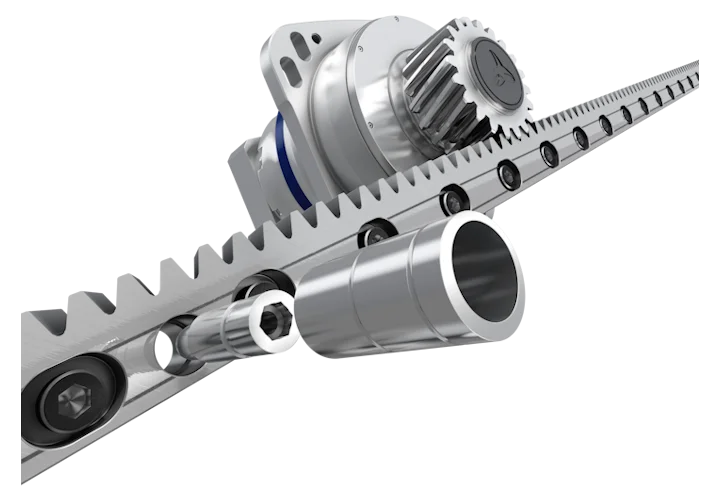

INIRA^® combines our innovative concepts for simple, safe, and efficient rack mounting. With INIRA^® clamping, INIRA^® adjusting, and INIRA^® pinning, we have made the mounting process significantly faster, more precise, and more ergonomic.

cynapse^® brings intelligence to your drives: IIoT connectivity meets data-based analysis and predictive optimization. This is made possible by the combination of innovative technology and over 40 years of expertise from WITTENSTEIN – for maximum transparency, efficiency, and availability of your machine
