alpha Premium Line

XP+

Planetary gearbox

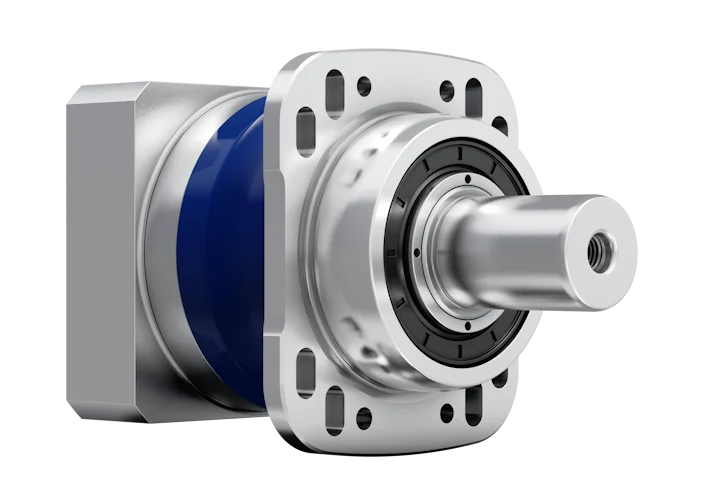

The XP+ with its specially designed output interface and extremely compact design opens up new dimensions in power transmission that far exceed the industry standard. The XP+ impresses with the highest torque density on the market combined with maximum torsional rigidity and tilting moment capacity.

3 – 100

Ratio

50 – 3840 Nm

Max. torque

≤ 1 – 4 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Productivity

Highest torque density and rigidity shorten your cycle time

Savings potential

The shaft gearbox with maximum tilting moment capacity and torque density enables new machine concepts, such as the elimination of external bearings or the use of a smaller size

Process quality

Consistently low torsional backlash over the entire gearbox service life and high torsional rigidity enable maximum positioning accuracy

Technical details

Product typeXP+XP+ HIGH SPEED
DesignMFMC
Operating modeCyclic operationContinuous operation
Ratio3 – 1003 – 100
Number of sizes74
Max. backlash – Standard c)jt≤ 3 arcmin≤ 4 arcmin
Max. backlash – Reduced c)jt≤ 1 arcmin≤ 2 arcmin
Max. torqueT2α50 – 3840 Nm68 – 880 Nm
Max. input speedn1Max7500 rpm6000 rpm
Torsional rigidityCt21290 Nm/arcmin290 Nm/arcmin
Max. tilting momentM2KMax3256 Nm3256 Nm
c) In relation to reference sizes
Product typeXP+XP+
DesignMFMC
Output shape
Smooth shaft✓✓
Shaft with key d)✓✓
Splined shaft (DIN 5480)✓✓
Blind hollow shaft✓✓
System output✓✓
Input shape
Motor-mounted✓✓
Self-contained version✓
Characteristic
Flange with slotted holes✓✓
Food-grade lubrication a) b)✓✓
Optimized mass inertia a)✓✓
System solutions
Linear system (rack / pinion)✓✓
Servo actuator✓
Accessory (for more information, see the relevant product pages)
Coupling✓✓
Shrink disc✓✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
d) Performance reduction: For detailed sizing, please use our cymex® design software
Document name Document type Language Downloads
XP+, RP+,XPK+, RPK+, XPC+, RPC

Catalog alpha Premium Line

XP+, RP+,XPK+, RPK+, XPC+, RPC

 Brochure /Catalog American English
Download (17 KB) Open in viewer

Technical data / Dimension sheets XP+

 Brochure /Catalog American English
Download (2 KB) Open in viewer
Technical documents XP+ / XPC+ / XPK+

alpha Premium Line

Technical documents XP+ / XPC+ / XPK+

 Operating manual Neutral
Download (3 KB) Open in viewer

Sealing Plate

Operating manual Neutral
Download (121 B) Open in viewer

Ordering code / CAD data XP+

 CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Perfection in a new dimension

Highest toothing quality results in minimal torsional backlash and maximum torque density
Specially designed output for very high torque transmission, enables receptacle of high tilting moments
Wide range of output options
Reduced cycle time due to increased acceleration
Increased smooth running and repeatability
Optionally available with R flange

Further Information

The R-flange sets the standard

Premium Linear System with XP+

XP+ HIGH SPEED

cynapse® & smart services

Accessories

The R-flange is available as the standard option for the XP+. The slotted holes integrated into the gearbox flange allow easy adjustment of the gearbox with the pinion mounted on the rack.

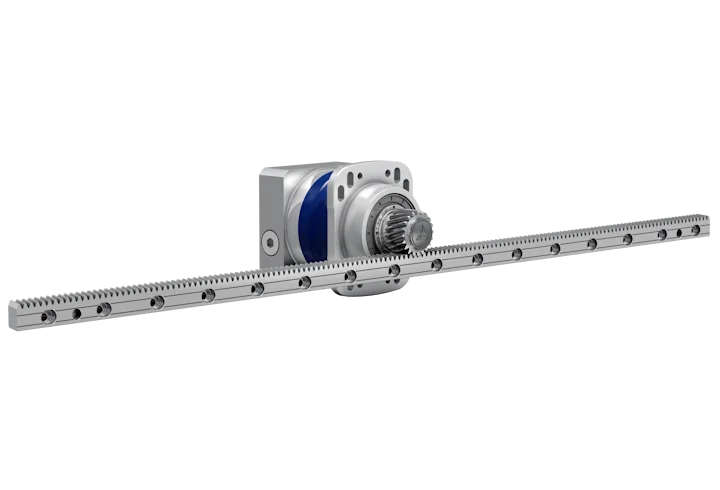

The XP+ for perfectly matched rack and pinion systems for high to very high demands. Typical areas of application are laser machines, wood, plastic, and composite material processing centers, cutting machine tools, e.g., HSC milling machines, as well as highly dynamic and precise handling applications.

Read more

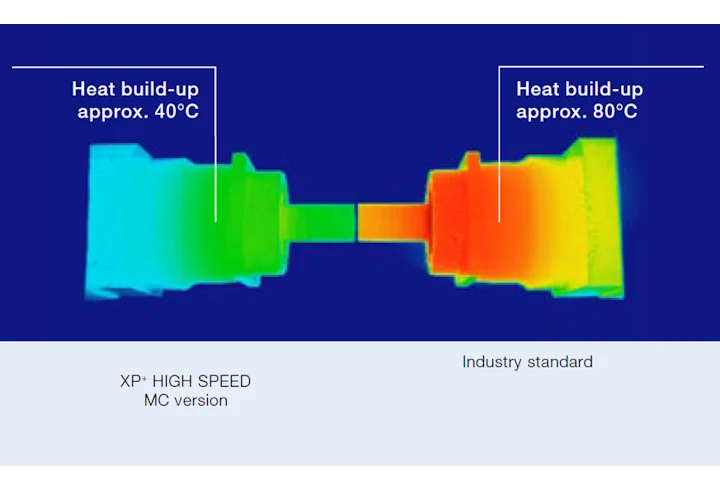

The XP+ HIGH SPEED opens up new dimensions in power transmission for continuous operation applications—in the smallest of spaces. Higher nominal speeds and an increased service life of up to 30,000 hours are possible.

With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our smart services can make your digital production faster, safer, and more efficient.

Read more

Optimize your value chain: Utilize the combination of gearboxes and accessories in a complete package to streamline your internal processes. Find the right metal bellows couplings for our products.

Read more
