Racks

Name: Racks
Brand: WITTENSTEIN group

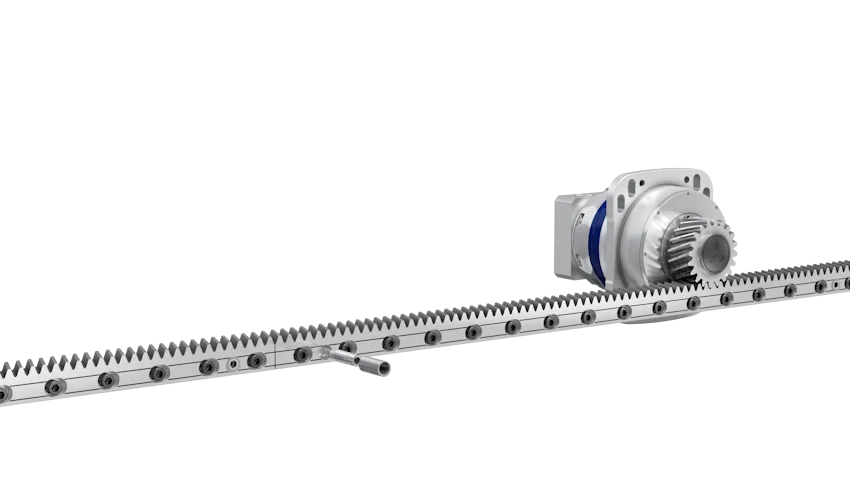

When developing your machine concept, you will of course also need to find a suitable rack. You'll find the right one with us: You can select the ideal rack for your application, depending on your requirements in terms of smooth running, positioning accuracy, feed force and installation.

1,5 mm – 8 mm

Size / module

2.3 – 135 kN

Max. feed force

167 – 2000 mm

Length

Reliability

Durable toothing design avoids cost-intensive machine downtimes

Efficiency

INIRA^® enables a significant reduction in assembly time and thus reduces throughput time

Positioning accuracy

The right variant can be selected for the application based on the respective requirements

Segment		Value	Advanced	Premium
Module	m [mm]	1.5; 2; 3; 4	2; 3; 4; 5; 6; 8	2; 3; 4; 5; 6; 8
Lengths ^a)	L [mm]	500 - 2000	167 – 2000 a)	167 – 1000 a)
Bore spacing	l₁ [mm]	125	62.5 b); 125	62.5 b); 125
Smooth running		Level 2	Level 2;3	Level 3; 4
Positioning accuracy		Level 2	Level 2;3	Level 3; 4
Feed force		Level 1	Level 2; 3; 4	Level 3; 4
Helically toothed		✓	✓	✓
Straight toothing		- c)	- c)	- c)
INIRA^®		- c)	✓	✓
Customized lengths and bores		✓ c)	✓ c)	✓ c)
Technical data for the linear drive are derived from the interaction of gearbox, pinion and rack. See the preferred linear systems in the catalog or individual configuration options in cymex^®.
^a) Available intermediate lengths depending on the module
^b) 62.5 mm bore spacing in combination with level 4 feed force
^c) on request
