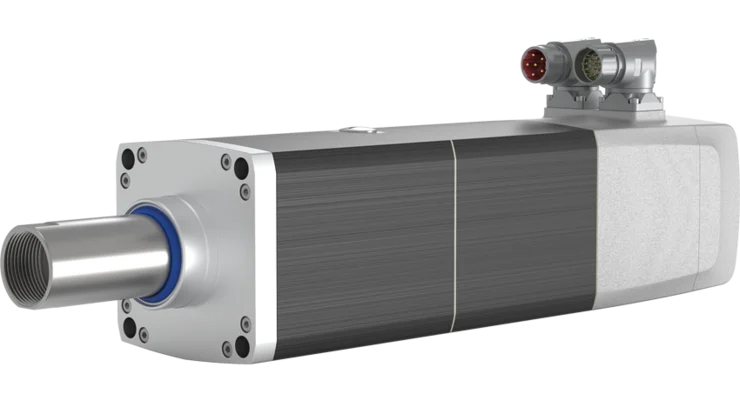

cyber^® force line

Name: cyber® force line
Brand: WITTENSTEIN group

Linear actuators

efficient – precise – highly integrated

The electromechanical linear actuators of the cyber^® force line are the ideal solution for applications that require high precision, force and velocity. The drives impress with their high efficiency and maximum power density. They also ensure fast and precise throughput rates in the production process. The compact actuators simplify integration and reduce costs.

105 mm

Size

10 – 25 kN

Max. force

0.5 – 1.25 m/s

Max. linear velocity

Flange dimensions		mm	105
Ball screw variant			Velocity	Force
DC bus voltage	U_DC	V_DC	560 / 750*	560 / 750*
Maximum force	F_max	kN	10	25
Continuous stall force	F₀	kN	2.2	6.2
Max. permissible linear velocity	V_n	mm/s	1250	500
Max. power	P_max	W	8320	8028
Maximum current	I_max	A	28.5	28.5
Continuous stall current	I₀	A	6.6	6.6
Stroke length		mm	100 / 200 / 300 / 400
Protection class			IP65
*This is a machine whose standard values are set to the DC bus voltage of 560 V. The motors can be operated safely up to an DC bus voltage of 750 V.

Document name	Document type	Language	Downloads
cyber^® force line / cyber^® kit motor / cyber^® linear motor Operating Manual Mxxx / Axxx	Operating manual	Neutral	Download (828 B) Open in viewer
Technical data (CAD/CAE, dimension sheet, data sheet) cyber^® force line	CAD / CAE	Neutral	Open in viewer
