cyber^® kit line small

Name: cyber® kit line small
Brand: WITTENSTEIN group

Frameless servo motors

high torque – highly integrated – flexible

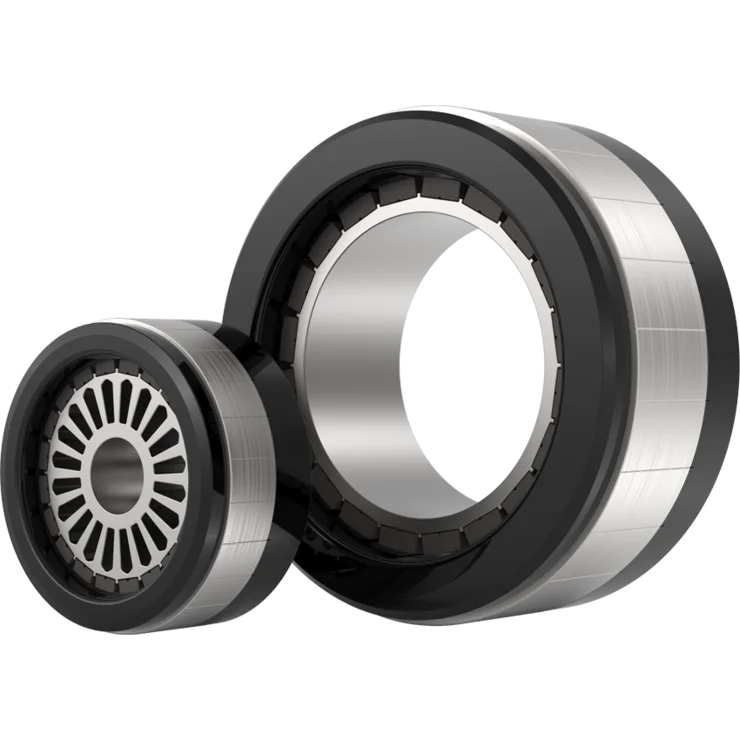

The frameless servo motors of the cyber^® kit line product family offer maximum torque and flexibility in a compact size. In addition, the frameless design with a small and large hollow shaft gives the maximum possible freedom of integration to develop unique solutions for specific applications. The cyber^® kit line consists of a rotor and stator.

48/560 V DC

DC bus voltage

1 – 30 Nm

Max. torque

10000 rpm

Max. speed

Size		050	085
DC bus voltage	U_DC [V]	48 \| 560	48 \| 560
Max. power	P_max [W]	304 - 1229	1773 - 9405
Maximum torque	M_max [Nm]	0.66 - 2.88	7.4 - 31.5
Maximum current	I_max [A]	3 - 20	10 - 120
Continuous stall torque	M₀ [Nm]	0.35 - 1.09	2.98 - 7.70
Continuous stall current	I₀[A]	1.1 - 9.0	4.1 - 36.7
No-load speed	n₀ [min^-1]	3801 - 10843	2290 - 8324
Stator outer diameter	A1 [mm]	50	85
Stator length	B [mm]	23.2 \| 32.9 \| 52.7	36.7 \| 57 \| 96.8
Stator stack length	B1 [mm]	10 \| 20 \| 40	20 \| 40 \| 80
Rotor inner diameter	D [mm]	12 \| 30	15 \| 50

Document name	Document type	Language	Downloads
Catalog cyber^® kit line	Brochure /Catalog	Neutral	Download (12 KB) Open in viewer
Instruction sheet cyber® kit line encoder module	Brochure /Catalog	Neutral	Download (2 KB) Open in viewer
cyber^® kit line Project specifications cyber^® kit line motor	Operating manual	Neutral	Download (2 KB) Open in viewer
Technical data (CAD/CAE, dimension sheet, data sheet) cyber^® kit line small	CAD / CAE	Neutral	Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300

To the contact form

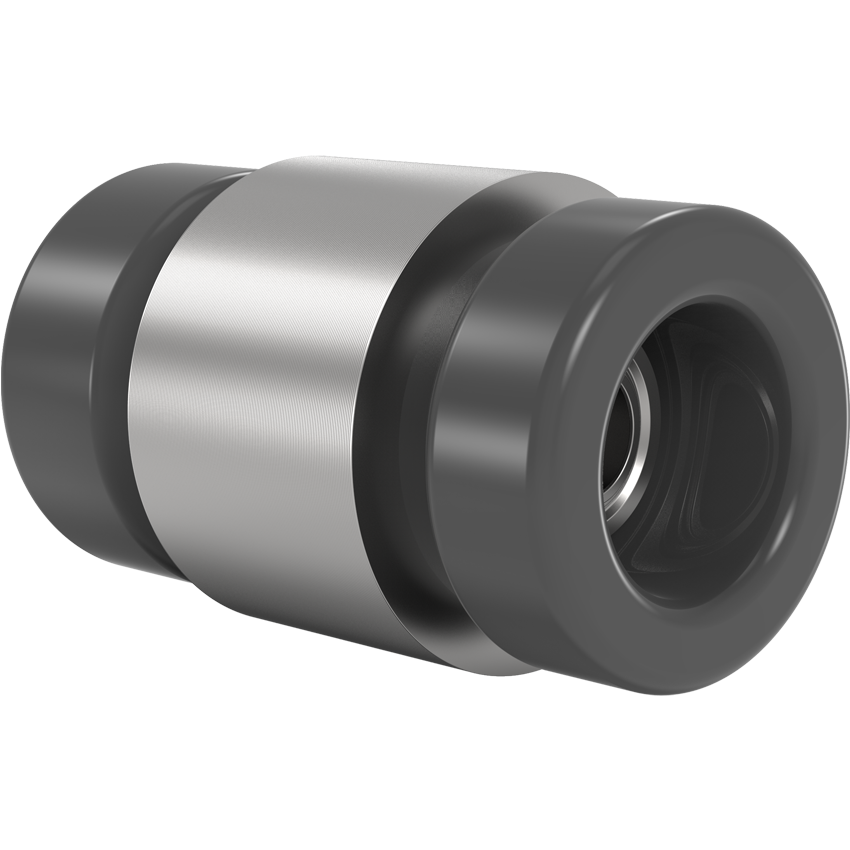

With a wide range of choices, the cyber^® kit line offers maximum flexibility for the user. The torque-optimized motors offer a maximum of robustness due to their full potting and maximum integratability due to the frameless design with small and large hollow shaft. Combined with the integrated temperature sensors PTC and PT1000 as well as optional encoder module the motors open up many possibilities in terms of connectivity.
