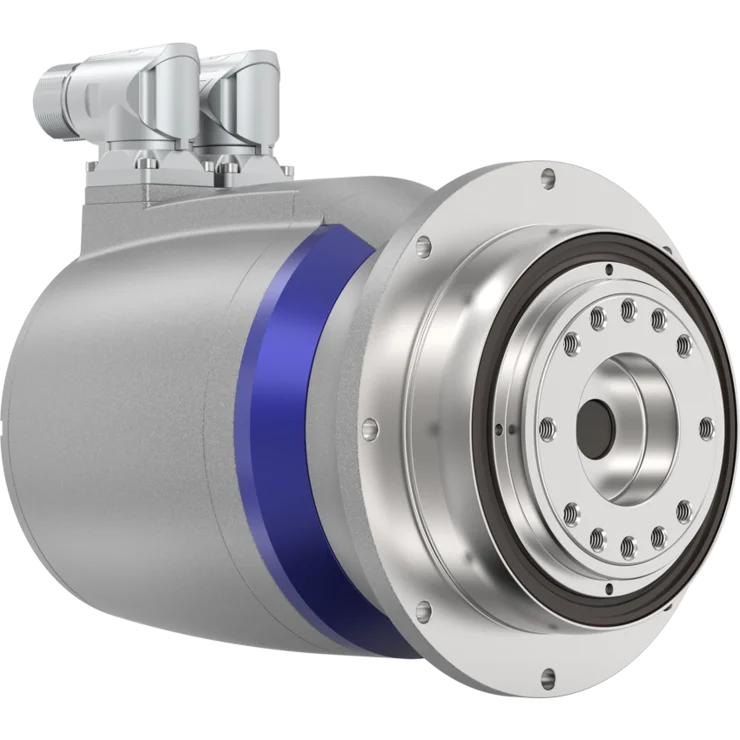

Name: premo® TP Line
Brand: WITTENSTEIN group

Servo actuator

The premo^® TP Line is optimized for demanding positioning and machining tasks: Minimal backlash and maximum rigidity enable short cycle times and high surface quality. The output flange interface is ideal for lever arms or pinions. The motor encoder is equipped with HIPERFACE^® singleturn encoders for precise positioning as standard.

16 – 100

Ratio

35 – 380 Nm

Max. torque

≤ 1 – 3 arcmin

Backlash

Higher efficiency

The low moment of inertia and high power density result in improved utilization of the energy supplied

Smaller footprint

The short installation length of the servo actuators helps to make the machine design more compact

Increased productivity

The increased rigidity and dynamics achieve a higher output in your machine

Product type		premo^®TP Line
Ratio		16 – 100
Number of sizes		3
Max. backlash ^c)	j_t	≤ 1 – 3 arcmin
Max. acceleration torque	T_2b	380 Nm
Max. output speed	n_2Max	375 rpm
Torsional rigidity	C_t21	82 Nm/arcmin
Max. tilting moment	M_2KMax	440 Nm
Operating voltage	U_D	320 V; 560 V
^c) In relation to reference sizes

Digital encoders		✓
1-cable connection		✓
Holding brake		✓
Output shape
Flange		✓
System output		✓
Characteristic
Food-grade lubrication ^{a) b)}		✓
System solutions
Linear system (rack / pinion)		✓
Accessory (for more information, see the relevant product pages)
Coupling		✓
Power cable, signal cable, hybrid cable		✓
^a) Performance reduction: Technical data available on request ^b) Please contact WITTENSTEIN alpha

Document name	Document type	Language	Downloads
Technical data / Dimension sheets premo^®	Brochure /Catalog	American English	Download (2 KB) Open in viewer
Technical data (CAD/CAE, dimension sheet, data sheet) premo^® TP Line	CAD / CAE	Neutral	Open in viewer
