alpha Advanced Line

SPC+

Bevel gearbox

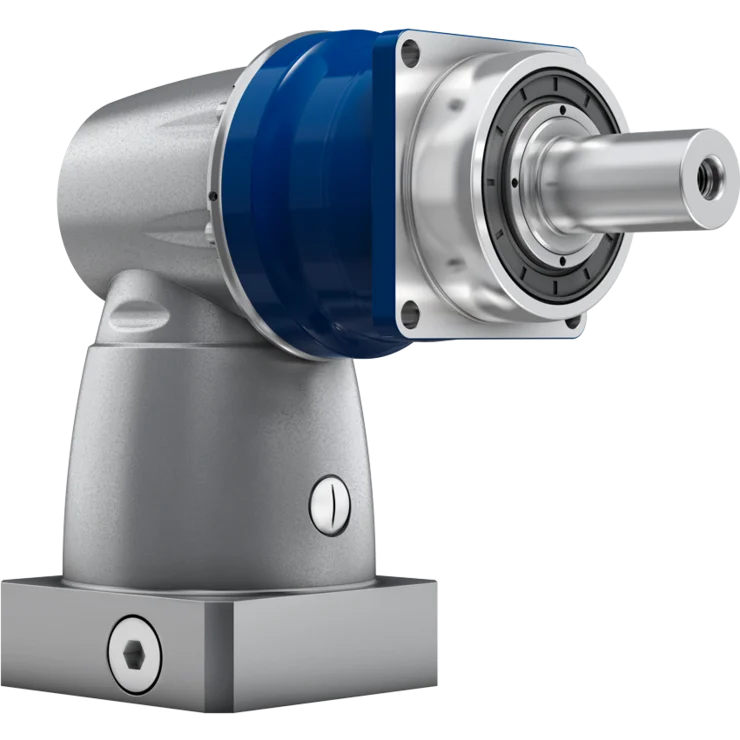

The low-backlash right-angle gearboxes with SP+-compatible output shaft. Thanks to its axially short design, the SPC+ gearbox series is used in compact machines. Its precision, torque and efficiency are particularly impressive in dynamic applications.

4 – 20

Ratio

48 – 1936 Nm

Max. torque

≤ 2 – 4 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Compactness

High torque density thanks to high performance and short axial length

Velocity

Maximum velocity increases machine output

Efficiency

Friction losses reduced to a minimum thanks to intelligent design

Technical details

Product typeSPC+
DesignMF
Ratio4 – 20
Number of sizes5
Max. backlash c)jt≤ 2 – 4 arcmin
Max. torqueT2α48 – 1936 Nm
Max. input speedn1Max6000 rpm
Torsional rigidityCt21166 Nm/arcmin
Max. tilting momentM2KMax1600 Nm
c) In relation to reference sizes
Output shape
Smooth shaft✓
Shaft with key d)✓
Splined shaft (DIN 5480)✓
Blind hollow shaft✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication a) b)✓
System solutions
Linear system (rack / pinion)✓
Accessory (for more information, see the relevant product pages)
Coupling✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
d) Performance reduction: For detailed sizing, please use our cymex® design software
