Rack and pinion systems
Our expertise extends beyond the coupling of individual components such as motors, gearboxes, pinions, and racks. We offer rack and pinion systems that are perfectly tailored to your application.
Rack and pinion systems
alpha Value Line
- Max. feed force
- 1.89 – 8 kN
- Max. feed velocity
- 160 – 400 m/min
- Positioning accuracy (single drive)
- ≥ 140 µm

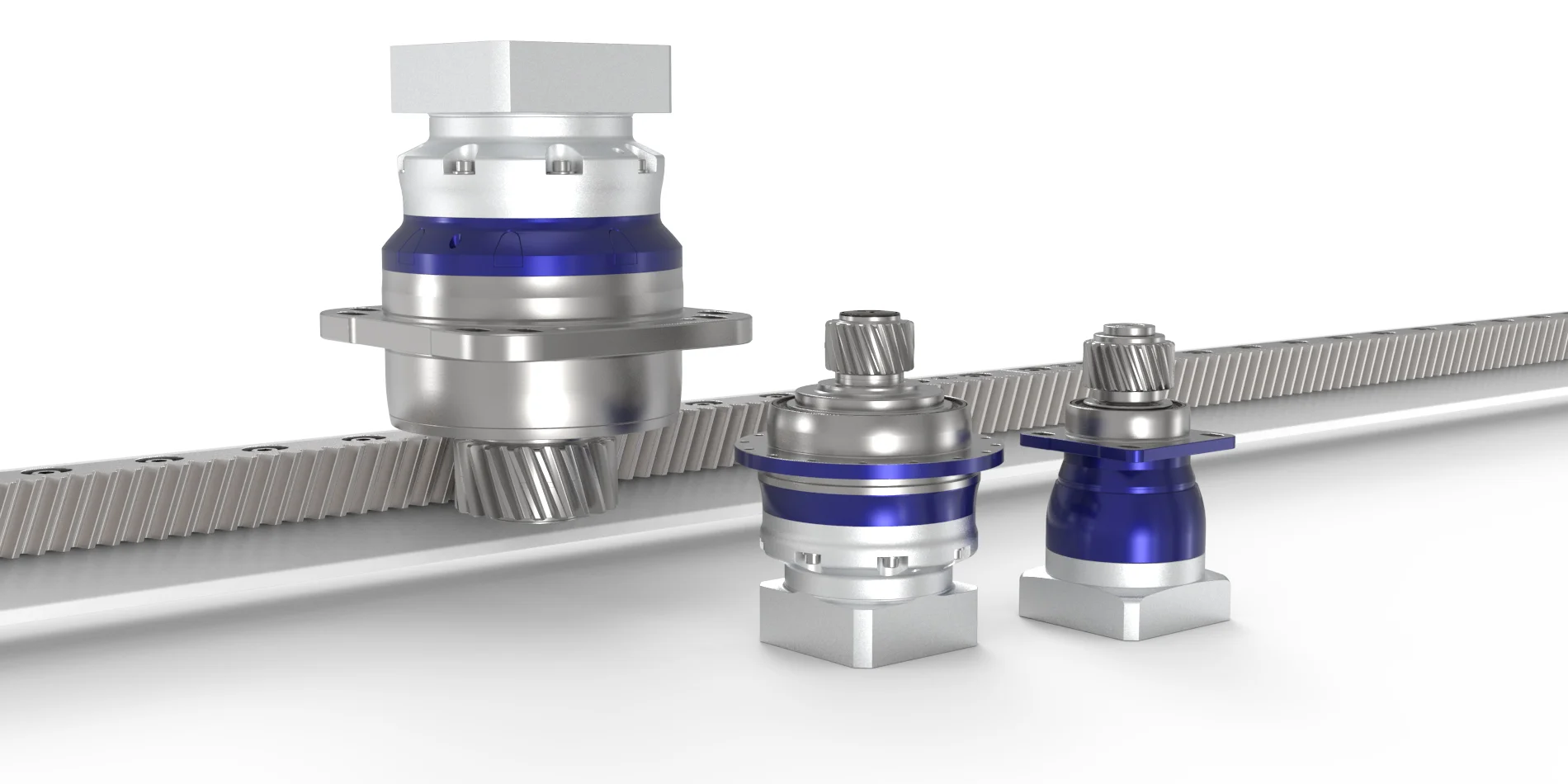

Rack and pinion system in the Value segment with R-flange
alpha Advanced Line
- Max. feed force
- 1.37 – 21 kN
- Max. feed velocity
- 45 – 570 m/min
- Positioning accuracy (single drive)
- ≥ 30 µm
Perfectly matched linear systems with planetary, right-angle, worm gearboxes or servo actuators
alpha Premium Line
- Max. feed force
- 5.45 – 112 kN
- Max. feed velocity
- 91 – 333 m/min
- Positioning accuracy (single drive)
- ≥ 30 µm
The perfect solution for linear feed drives for machine tools and highly dynamic automation
- Size / module
- 1,5 mm – 8 mm
- Max. feed force
- 2.3 – 135 kN
- Length
- 167 – 2000 mm
Racks perfectly matched to our systems with lengths from 500 - 2000 mm
- Size / module
- 1,5 mm – 8 mm
- Max. feed force
- Gearbox-dependent
- Designs
- Factory assembly
Pre-assembled pinions for reduced assembly work
alpha Advanced Line
- Filling quantity
- 125 cm³
- Number of outlets
- 1
- Operating voltage
- 24 V
Lubricator for optimum relubrication of open toothing with 125 cm3 filling quantity
alpha Advanced Line
- Filling quantity
- 400 cm³
- Number of outlets
- 1, 2, 3, 4
- Operating voltage
- 24 V
Lubricator for optimum relubrication of open toothing with 400 cm3 filling quantity
- Size / module
- 1,5 mm – 8 mm
- Helix angle direction
- Straight, left-hand, right-hand
- Connection orientation
- Straight, angled
Lubrication pinion and lubricating axes for relubricating the open toothing
- Number of outlets
- 2, 3, 4, 5, 6, 7, 8
- Operating temperature (depending on the lubricant used)
- 10°C - 60°C
- Hose connection
- Straight, 6 mm
Progressive distributor for precise lubricant distribution
- Number of outlets
- 2, 3, 4
- Operating temperature (depending on the lubricant used)
- 10°C - 60°C
- Hose connection
- Straight, 6 mm
Splitter for lubricant distribution
Which product is right for your application?
Our sizing tools support you from the first sizing step to the fast, precise, and safe sizing of complete drive systems.
Our rack and pinion systems are ideal solutions for many industries and fields of application. They set new standards and thus open up new possibilities in design and assembly.
The perfect system solution counts
Our rack and pinion systems deliver maximum performance across the board in your application.
Perfectly tailored solutions
The choice is yours. We tailor the alpha linear systems perfectly to your individual requirements in terms of smooth running, positioning accuracy, and feed force.
New possibilities for design and assembly
Well thought-out solutions reduce the effort involved in design and assembly.
Optimal rigidity
Highly rigid inputs enable maximum overall linear rigidity and ensure perfect control behavior in your application.
Long service life
Components designed for endurance ensure maximum reliability and safety.
Rack and pinion systems for all axes
Our pinion and rack systems offer complete drive solutions for all axes—from a single source and in the highest quality. The areas of application are virtually unlimited: from automation solutions and high-precision axes in machine tools to manufacturing systems that require maximum productivity.
Thanks to their innovative design, our systems stand for:
- Maximum smooth running and positioning accuracy
- High feed force and power density
- Maximum rigidity and reliability
Whether for mechanical engineering, automation, or complex manufacturing processes, our linear systems with pinion and rack input guarantee precise movements and easy assembly. Put your trust in solutions that combine efficiency and quality.
