alpha Value Line
axenia value

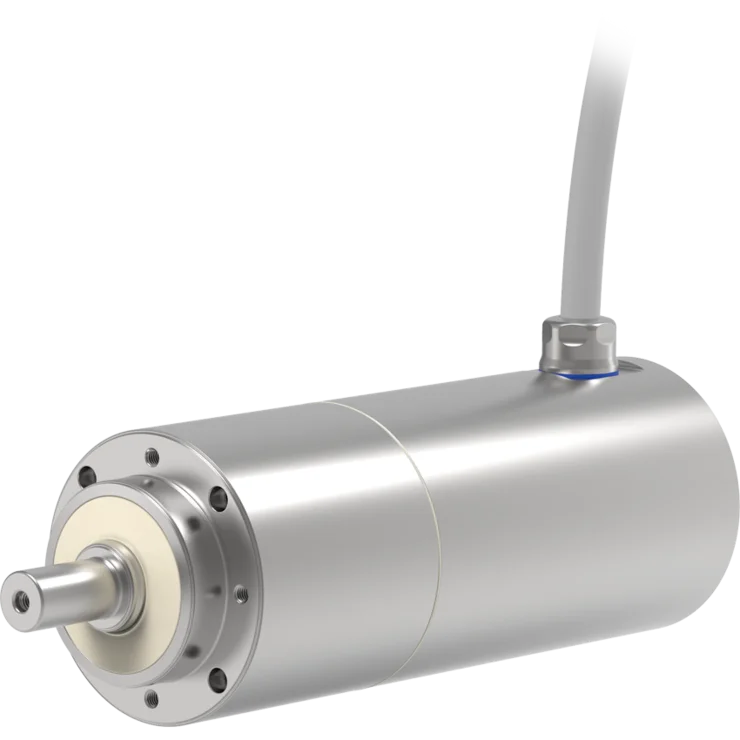

Servo actuator
axenia value is a compact servo actuator that has been specially developed for hygiene-critical applications in accordance with EHEDG guidelines. With its robust stainless steel construction, high resistance to cleaning and scalable performance, it meets the highest requirements in the automation of sensitive production processes.
10 – 25
Ratio
20.2 – 200 Nm
Max. torque
≤ 10 arcmin
Backlash
Process reliability
With its screw-free and edgeless construction, the servo actuator features a holistically hygienic design to prevent the growth of and infection with bacteria and germs.
Open design
The omission of the usual covers offers great design freedom while also enabling direct and more effective cleaning.
Compactness
The compact design of the servo actuator combined with the possibility of an open machine construction enables a smaller footprint.
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 Hygienic Design Brochure HDP+, HDV, axenia value | Brochure /Catalog | American English | |
 Hygienic Design Brochure HDP+, HDV, axenia value | Brochure /Catalog | American English | |
 alpha Value Line Technical documents axenia value Generation 2 | Operating manual | Neutral | |
Technical data (CAD/CAE, dimension sheet, data sheet) axenia value | CAD / CAE | Neutral |
