alpha Value Line
HDV

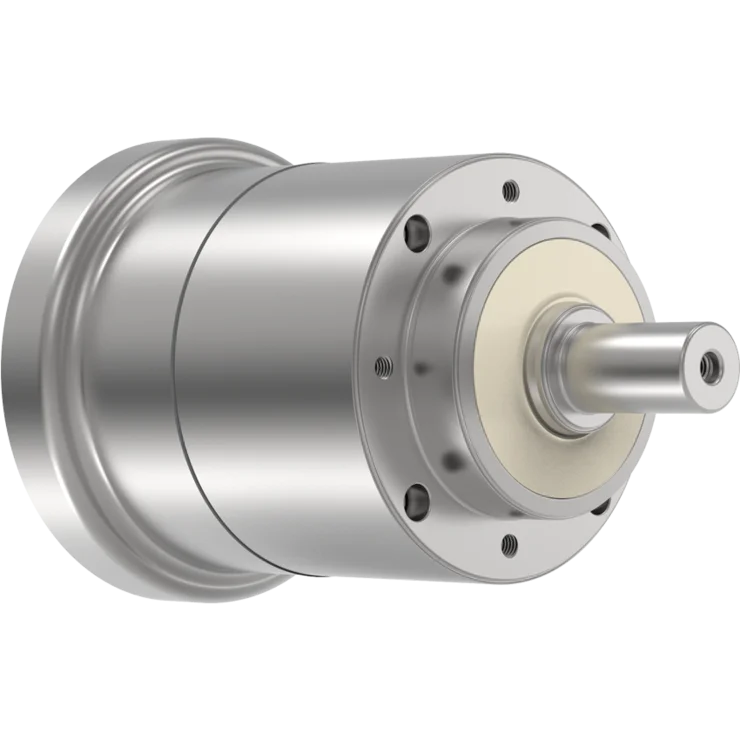

Planetary gearbox
The low-backlash planetary gearboxes with output shaft in hygienic design. The main feature of the gearbox series developed in accordance with EHEDG guidelines is the safe and efficient cleaning of the gearbox. The new concept allows completely new freedom in the design and construction of systems with the highest standards of hygienic and sterile production.
4 – 100
Ratio
46 – 320 Nm
Max. torque
≤ 10 arcmin
Backlash
Hygienic design
New design freedom through direct process integration
Cleanability
Fast, efficient and safe cleaning. Resistant to chemical cleaning and disinfection media
Tightness
Maximum tightness and reliability thanks to IP69K (max. 30 bar)
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 Catalog alpha Basic Line & alpha Value Line CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV | Brochure /Catalog | American English | |
 Hygienic Design Brochure HDP+, HDV, axenia value | Brochure /Catalog | American English | |
 Hygienic Design Brochure HDP+, HDV, axenia value | Brochure /Catalog | American English | |
 Technical data / Dimension sheets HDV | Brochure /Catalog | Neutral | |
 alpha Advanced Line / alpha Value Line Technical documents HDP+ / HDV | Operating manual | Neutral | |
Ordering code / CAD data HDV | CAD / CAE | Neutral |
Contact us
Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.
Built to protect: Greater safety with hygienic design
(NSF, Kosher, and Halal certified);
FDA-certified materials
• Housing made of smooth-rolled stainless steel 1.4404 / AISI 316L (Ra ≤ 0.8 µm)
• No dead spaces and with large radii
• O-ring molding in accordance with DIN 11864
with triple sealing concept for
maximum safety
(options available for B14 mounting)
