alpha Basic Line

CP

Name: CP
Brand: WITTENSTEIN group

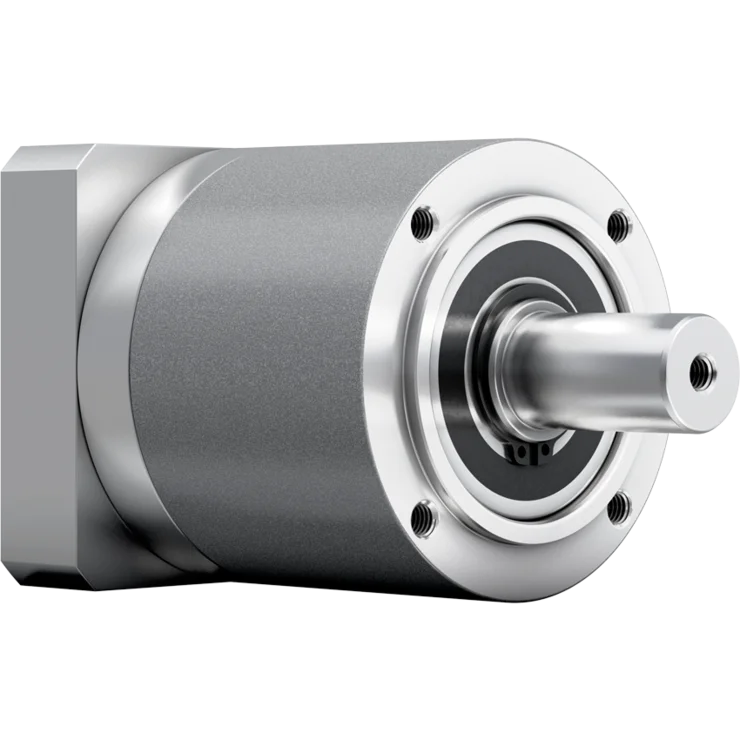

Planetary gearbox

Designed for mid-range and economy applications with low to medium positioning accuracy requirements. That's what makes the CP planetary gearbox so impressive. High flexibility combined with maximum cost-effectiveness are the key advantages that these gearboxes offer you.

3 – 100

Ratio

17 – 800 Nm

Max. torque

≤ 12 arcmin

Backlash

Flexible configurability

Various output variants enable precise integration – for maximum design freedom for individual requirements

Maximum efficiency

The gearboxes in the alpha Basic Line impress with their outstanding price-performance ratio: cost-efficient to purchase, energy-efficient to operate – for economical and sustainable use

High-quality entry-level solution

The alpha Basic Line is characterized by high-quality servo gearboxes that are quickly available at attractive prices – with the best performance in their class

Product type		CP
Design		MF
Ratio		3 – 100
Number of sizes		5
Max. backlash ^c)	j_t	≤ 12 arcmin
Max. torque	T_2α	17 – 800 Nm
Max. input speed	n_1Max	9000 rpm
^c) In relation to reference sizes

Output shape
Smooth shaft	✓
Shaft with key ^d)	✓
Input shape
Motor-mounted	✓
Characteristic
Food-grade lubrication ^{a) b)}	✓
Accessory (for more information, see the relevant product pages)
Coupling	✓
^a) Performance reduction: Technical data available on request ^b) Please contact WITTENSTEIN alpha ^d) Performance reduction: For detailed sizing, please use our cymex^® design software

Document name	Document type	Language	Downloads
Catalog alpha Basic Line & alpha Value Line CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV	Brochure /Catalog	American English	Download (22 KB) Open in viewer
Technical data / Dimension sheets CP, CPS CP, CPS	Brochure /Catalog	Neutral	Download (2 KB) Open in viewer
alpha Value Line / alpha Basic Line Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK	Operating manual	Neutral	Download (3 KB) Open in viewer
Sealing Plate	Operating manual	Neutral	Download (121 B) Open in viewer
Ordering code / CAD data CP	CAD / CAE	Neutral	Open in viewer
