alpha Value Line

NP

Name: NP
Brand: WITTENSTEIN group

Planetary gearbox

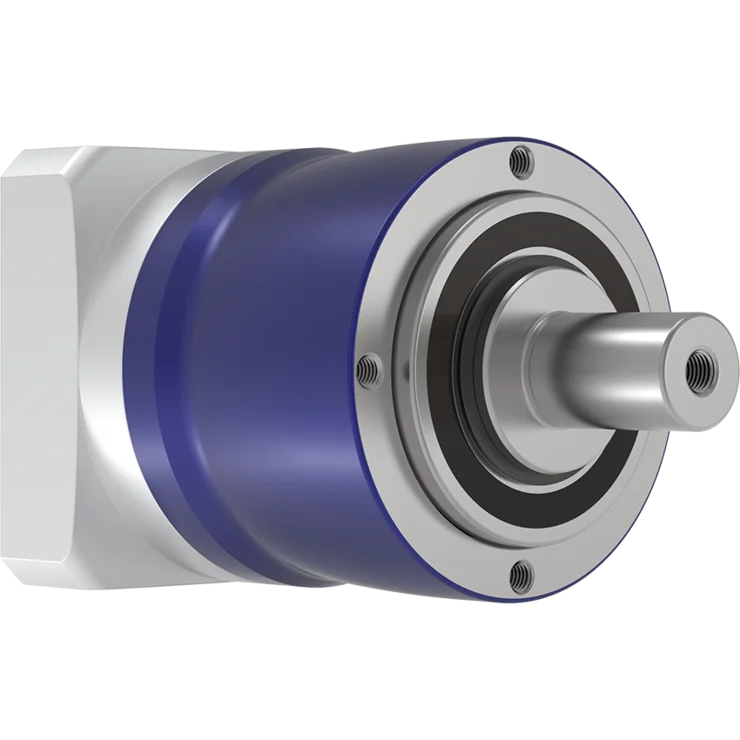

The alpha Value Line NP planetary gearbox is the ideal choice for mid-range applications where an output shaft is required. Universally applicable, it offers an economically attractive solution for a wide range of application scenarios – without compromising on quality and reliability.

3 – 100

Ratio

18 – 800 Nm

Max. torque

≤ 8 arcmin

Backlash

Universally applicable

The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries

High cost-effectiveness

Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency

Unique modularity

Thanks to modular interface concepts for motor and application connection, the NP series can be individually configured – with different clamping hub diameters, drive stages and mounting variants

Product type		NP
Design		MF; MA
Ratio		3 – 100
Number of sizes		5
Max. backlash ^c)	j_t	≤ 8 arcmin
Max. torque	T_2α	18 – 800 Nm
Max. input speed	n_1Max	10000 rpm
^c) In relation to reference sizes

Output shape
Smooth shaft	✓
Shaft with key ^d)	✓
Input shape
Motor-mounted	✓
Characteristic
Food-grade lubrication ^{a) b)}	✓
System solutions
Linear system (rack / pinion)	✓
Accessory (for more information, see the relevant product pages)
Coupling	✓
^a) Performance reduction: Technical data available on request ^b) Please contact WITTENSTEIN alpha ^d) Performance reduction: For detailed sizing, please use our cymex^® design software

Document name	Document type	Language	Downloads
Catalog alpha Basic Line & alpha Value Line CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV	Brochure /Catalog	American English	Download (22 KB) Open in viewer
Technical data / Dimension sheets NP / NPL / NPS / NPT / NPR / NTP NP, NPL, NPS, NPT, NPR, NTP	Brochure /Catalog	Neutral	Download (6 KB) Open in viewer
alpha Value Line / alpha Basic Line Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK	Operating manual	Neutral	Download (3 KB) Open in viewer
Sealing Plate	Operating manual	Neutral	Download (121 B) Open in viewer
Ordering code / CAD data NP	CAD / CAE	Neutral	Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300

To the contact form

FAST LANE

Value Linear System mit NP

cynapse^® & smart services

Accessories

Short delivery times available for selected product configurations.

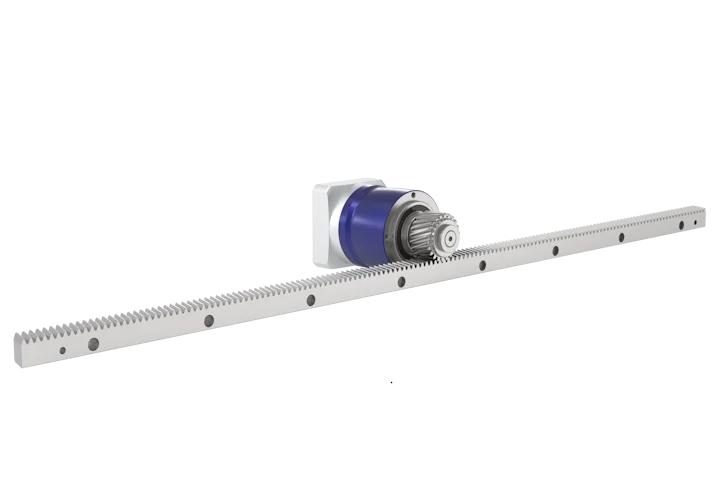

The NP for coordinated pinion-rack systems for simple requirements. Typical areas of application are woodworking machines, plasma cutting systems, or automation.
