alpha Basic Line

CVH

Worm gearboxes

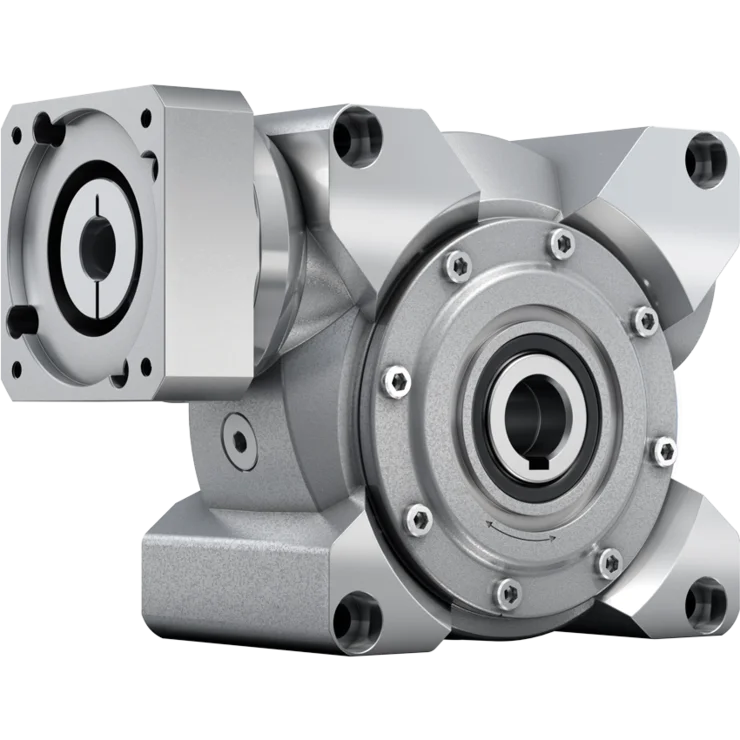

The CVH gearbox from the V-Drive Basic family impresses with its innovative toothing technology, which was specially developed for low-noise continuous operation (S1). Thanks to the integrated hollow shaft, it is ideal for a wide range of applications. Benefit from an excellent price-performance ratio and short delivery times – for maximum efficiency in your drive solution.

7 – 40

Ratio

68 – 301 Nm

Max. torque

≤ 15 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Reinforced output bearing

For increased external loads: robust bearing design with higher rigidity and optimized force absorption possible

Specially developed toothing

Reduced operating noise thanks to optimized toothing geometry – with high torque and smooth running characteristics at the same time

Top price-performance ratio

Short delivery times, high quality made in Germany

Technical details

Product typeCVH
DesignMF; MT
Ratio7 – 40
Number of sizes3
Max. backlash c)jt≤ 15 arcmin
Max. torqueT2α68 – 301 Nm
Max. input speedn1Max6000 rpm
c) In relation to reference sizes
Output shape
Hollow shaft interface✓
Keyed hollow shaft✓
Output on both sides✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication✓
Accessory (for more information, see the relevant product pages)

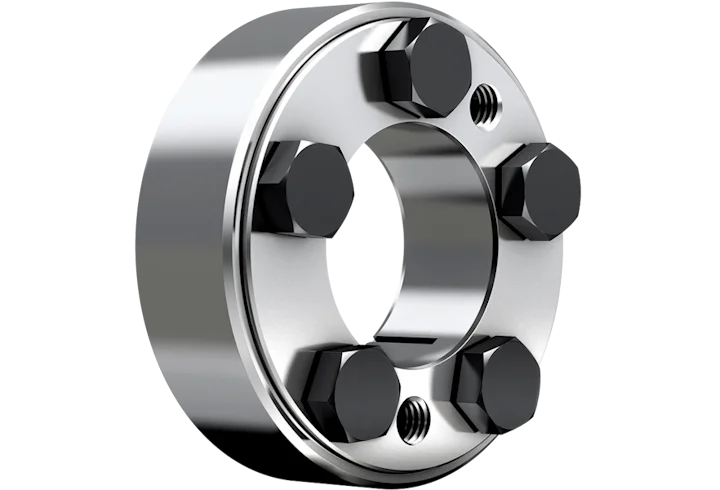

Shrink Disk✓
Document name Document type Language Downloads
CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV

Catalog alpha Basic Line & alpha Value Line

CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV

 Brochure /Catalog American English
Download (22 KB) Open in viewer
CVH, CVS

Technical data / Dimension sheets CVH / CVS

CVH, CVS

 Brochure /Catalog Neutral
Download (1 KB) Open in viewer
Technical documents V-Drive Advanced / Value / Basic

alpha Advanced Line / alpha Value Line / alpha Basic Line

Technical documents V-Drive Advanced / Value / Basic

 Operating manual Neutral
Download (4 KB) Open in viewer
Instruction sheet Shrink disc

Shrink disc

Instruction sheet Shrink disc

 Operating manual Neutral
Download (773 B) Open in viewer

Ordering code / CAD data CVH

CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

The quiet endurance runner

Metal bellows coupling on the input
Absolute backlash-free – for precise power transmission
Lifetime durability & maintenance-free – for long-term reliability without maintenance
Thermal length compensation – protects the motor from damage
Radial shaft seal
Very long service life.
Optimized for continuous operation
Input bearing
Bearing package for absorbing axial and radial forces.
Very well suited for high input speeds.
Output bearing
Tailored to a wide range of applications.
Toothing
Specially developed toothing for high torques
