NVH

Worm gearboxes

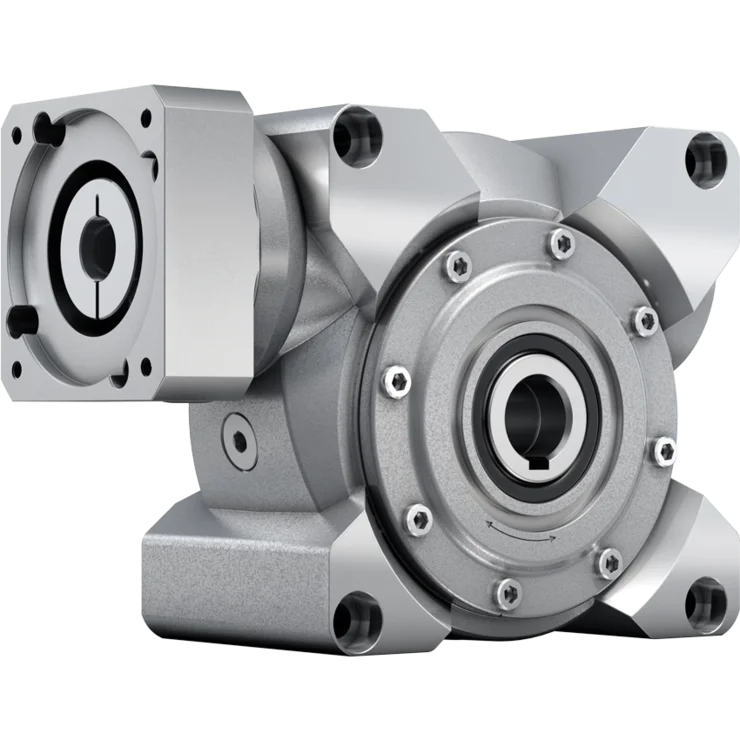

The NVH gearbox from the V-Drive Value family impresses with its high power density and moderate backlash. With its integrated hollow shaft and compact design, it is ideal for economical applications in continuous operation. A reliable solution with an attractive price-performance ratio – perfect for cost-conscious use.

4 – 400

Ratio

74 – 365 Nm

Max. torque

≤ 6 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
High performance

In cycle and continuous operation, the NVH impresses with its high power density and efficiency. This makes it particularly suitable for economical applications where reliable performance over long operating times is required

No stick-slip effect

Thanks to the precisely designed hollow flank toothing, there is no stick-slip effect with the NVH gearbox. This ensures smooth movement sequences – particularly advantageous for slow or precise positioning movements

High flexibility

The NVH gearbox offers a wide range of possible applications: In addition to the hollow shaft, various output forms are available. The gearbox is also available in a corrosion-resistant design – ideal for demanding environments or special industry requirements

Technical details

Product typeNVH
DesignMF
Ratio4 – 400
Number of sizes3
Max. backlash c)jt≤ 6 arcmin
Max. torqueT2α74 – 365 Nm
Max. input speedn1Max6000 rpm
c) In relation to reference sizes
Output shape
Hollow shaft interface✓
Keyed hollow shaft✓
Output on both sides✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication✓

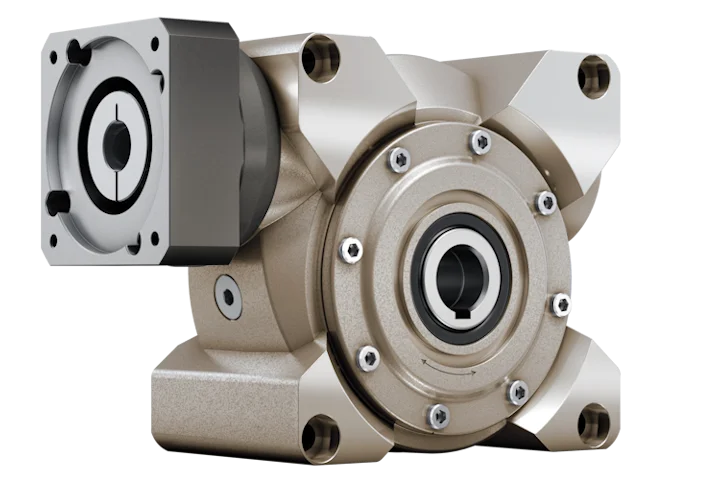

Corrosion-resistant✓
Accessory (for more information, see the relevant product pages)
Shrink Disk✓
