cyber^® kit line large

Name: cyber® kit line large
Brand: WITTENSTEIN group

Frameless servo motors

high torque – highly integrated – flexible

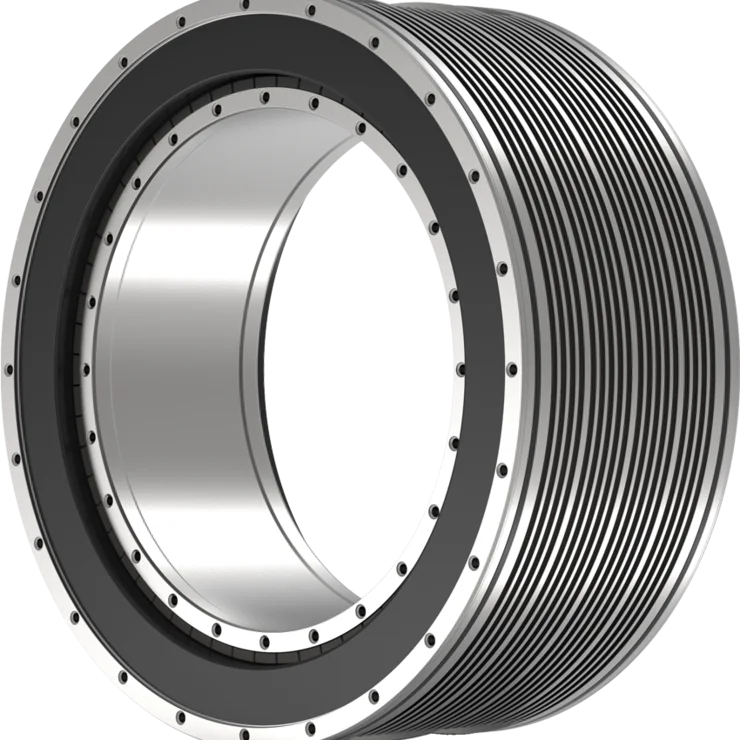

The frameless servo motors of the cyber^® kit line product family offer maximum torque and flexibility in a compact size. In addition, the frameless design with a small and large hollow shaft gives the maximum possible freedom of integration to develop unique solutions for specific applications. The cyber^® kit line consists of a rotor and stator.

560 V DC

DC bus voltage

580 – 9000 Nm

Max. torque

250 rpm

Max. speed

Size		290	360	420	530
DC bus voltage	U_DC [V]	560	560	560	560
Max. power	P_max [W]	11900 - 25900	11200 - 19800	2030 - 30800	31800 - 60000
Maximum torque	M_max [Nm]	580 - 2310	1122 - 4059	2234 - 4447	4847 - 9191
Maximum current	I_max [A]	33 - 93	45 - 110	82 - 138	109 - 209
Continuous stall torque	M₀ [Nm]	255 - 1002	484 - 1583	968 - 1945	2094 - 3982
Continuous stall current	I₀[A]	16 - 44	20 - 46	35 - 58	50 - 95
No-load speed	n₀ [min^-1]	240 - 364	147 - 236	168 - 206	137
Stator outer diameter	A1 [mm]	310	385	455	565
Stator length	B [mm]	90 \| 140 \| 240	110 \| 160 \| 260	130 \| 210	160 \| 260
Stator stack length	B1 [mm]	60 \| 110 \| 210	70 \| 120 \| 220	90 \| 170	120 \| 220
Rotor inner diameter	D [mm]	220	265	325	420

Document name	Document type	Language	Downloads
Catalog cyber^® kit line	Brochure /Catalog	Neutral	Download (12 KB) Open in viewer
Catalog small servo drive system (Generation 2)	Brochure /Catalog	Neutral	Download (12 KB) Open in viewer
Instruction sheet cyber® kit line encoder module	Brochure /Catalog	Neutral	Download (2 KB) Open in viewer
cyber^® kit line Project specifications cyber^® kit line motor	Operating manual	Neutral	Download (2 KB) Open in viewer
Technical data (CAD/CAE, dimension sheet, data sheet) cyber^® kit line large	CAD / CAE	Neutral	Open in viewer
