alpha Value Line
NPR

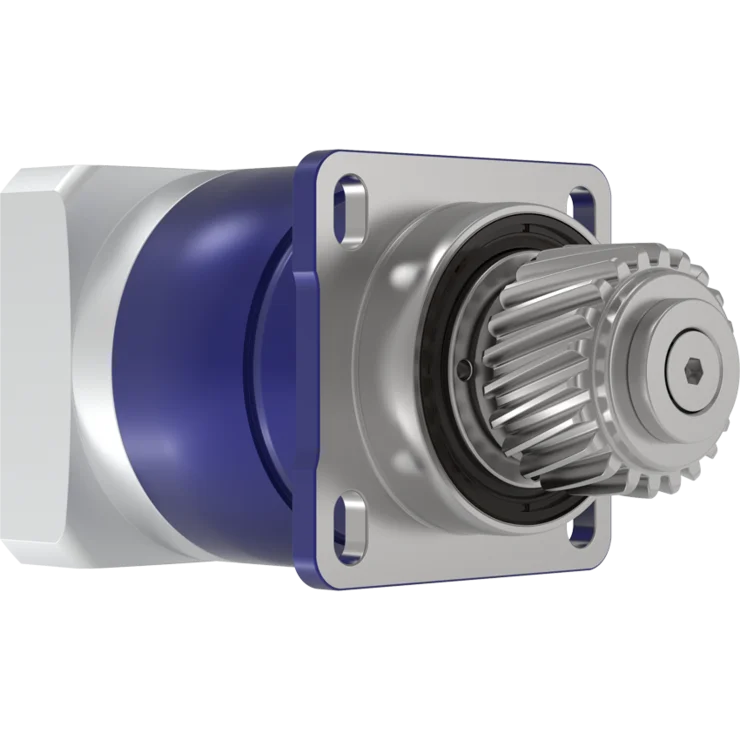

Planetary gearbox
The NPR planetary gearbox is part of the alpha Value Line and is ideal for applications with medium positioning accuracy requirements. Special feature: The slotted holes in the output flange enable a flexible and precise pinion-rack connection – perfect for linear motion tasks.
3 – 100
Ratio
51 – 800 Nm
Max. torque
≤ 8 arcmin
Backlash
Universally applicable
The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries
High cost-effectiveness
Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency
Clever drive variants
The NPR planetary gearbox from the alpha Value Line is the smart choice for applications with medium positioning accuracy – ideal for a flexible and precise pinion-rack connection thanks to slotted holes in the output flange
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 Catalog alpha Basic Line & alpha Value Line CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV | Brochure /Catalog | American English | |
 Technical data / Dimension sheets NP / NPL / NPS / NPT / NPR / NTP NP, NPL, NPS, NPT, NPR, NTP | Brochure /Catalog | Neutral | |
 alpha Value Line / alpha Basic Line Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK | Operating manual | Neutral | |
 Sealing Plate | Operating manual | Neutral | |
Ordering code / CAD data NPR | CAD / CAE | Neutral |
Contact us
Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

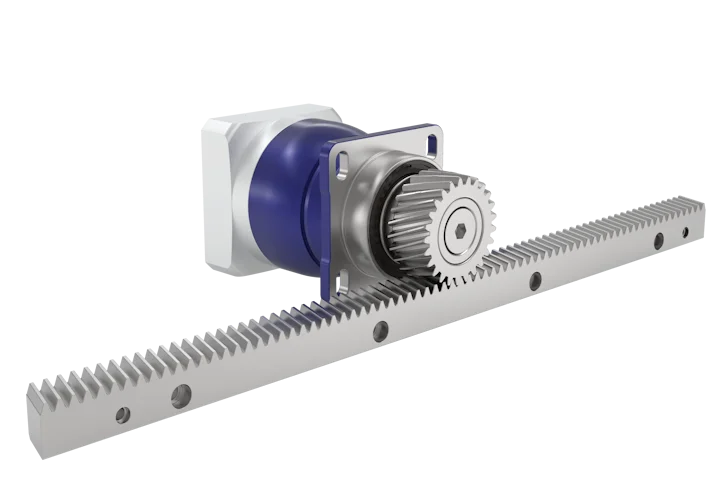

Perfect for linear motion tasks
Further Information
The NPR for coordinated pinion-rack systems for simple requirements. Typical areas of application in woodworking machines, plasma cutting systems, or in automation.
With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our smart services can make your digital production faster, safer, and more efficient.
Optimization of your value chain: Utilize the combination of gearboxes and accessories in a complete package to streamline your internal processes. Find suitable elastomer couplings for our products.
