alpha Value Line

Value Linear Systems

Name: Value Linear Systems
Brand: WITTENSTEIN group

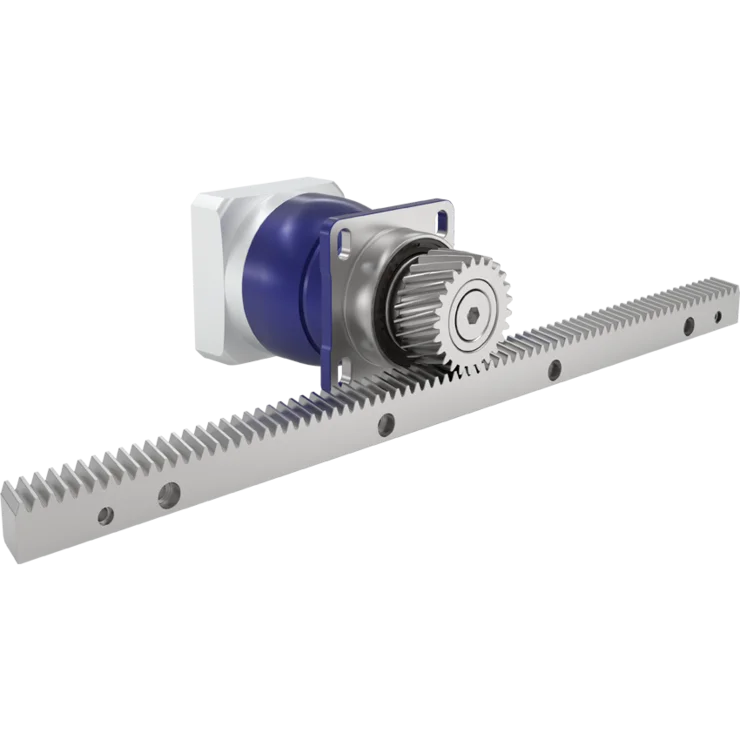

Rack and pinion system

The Value Linear Systems are designed for linear applications in the value segment with comparatively low requirements in terms of smooth running, positioning accuracy and feed force. The R-flange, adapted from the Premium segment, also allows more freedom in design in the Value segment. Fields of application can be found, for example, in wood processing machines or in automation.

1.89 – 8 kN

Max. feed force

160 – 400 m/min

Max. feed velocity

≥ 140 µm

Positioning accuracy (single drive)

Individual

Large configuration space consisting of gearbox, pinion and racks and accessories

Smart features

Optionally available with R-flange

Perfectly matched

Perfectly matched components ensure best-possible smooth running, positioning accuracy and feed force

Value Linear System — NPR	Max. feed force [N]	Max. velocity [m/min]
VLS 2	1890	253
VLS 3	3400	342
VLS 4	4300	347
VLS 6	6150	400
VLS 8	8000	160
Feed force and feed velocity depend on gear ratio.

The alpha Value Linear System is also available with the NP, NPL and NPS gearbox variants of the alpha Value Line and the NVS worm gearbox.
