alpha Value Line

NPT

Planetary gearbox

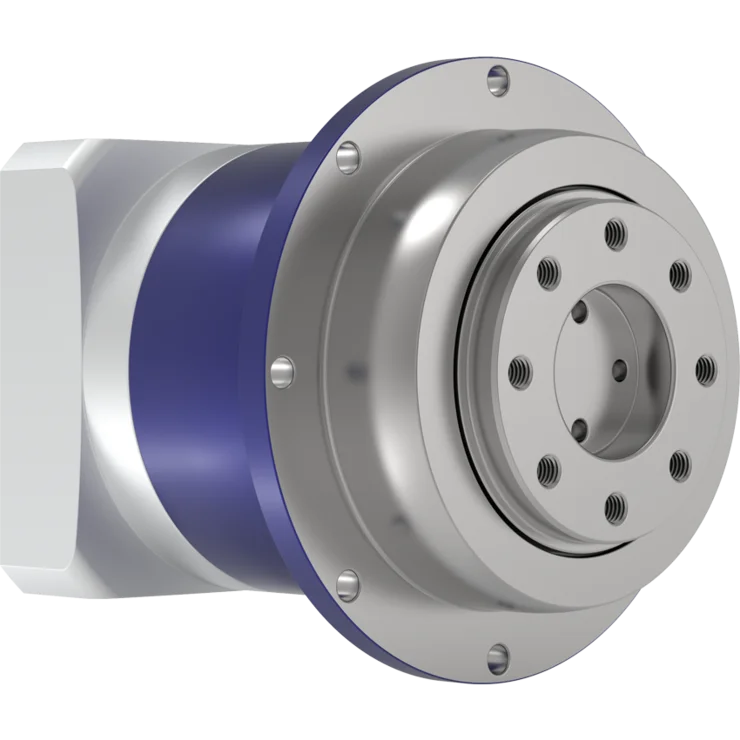

The NPT planetary gearbox with output flange is based on the proven output geometry of the TP+ – for easy integration into existing applications. With the HIGH TORQUE version, a variant with maximum power density is also available in the value segment.

3 – 100

Ratio

18 – 700 Nm

Max. torque

≤ 8 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Universally applicable

The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries

High cost-effectiveness

Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency

High power density

Maximum power in minimum installation space – for compact and powerful drive solutions

Technical details

Product typeNPT
DesignMF; MA
Ratio3 – 100
Number of sizes5
Max. backlash c)jt≤ 8 arcmin
Max. torqueT2α18 – 700 Nm
Max. input speedn1Max10000 rpm
c) In relation to reference sizes
Output shape
Flange✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication a) b)✓
Accessory (for more information, see the relevant product pages)
Coupling✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
Document name Document type Language Downloads
CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV

Catalog alpha Basic Line & alpha Value Line

CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV

 Brochure /Catalog American English
Download (22 KB) Open in viewer
NP, NPL, NPS, NPT, NPR, NTP

Technical data / Dimension sheets NP / NPL / NPS / NPT / NPR / NTP

NP, NPL, NPS, NPT, NPR, NTP

 Brochure /Catalog Neutral
Download (6 KB) Open in viewer
Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK

alpha Value Line / alpha Basic Line

Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK

 Operating manual Neutral
Download (3 KB) Open in viewer

Sealing Plate

Operating manual Neutral
Download (121 B) Open in viewer

Ordering code / CAD data NPT

CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Maximum performance in a compact format

Multi-part clamping hub system from the high-end range for maximum process reliability
Wide range of ratios from i = 3 to i = 100 – for maximum adaptability
Scalable power density
for demanding applications:
HIGH TORQUE version for sizes 015 to 035
Available with output flange for a stable and easy-to-install interface to the application
