alpha Advanced Line

TP+

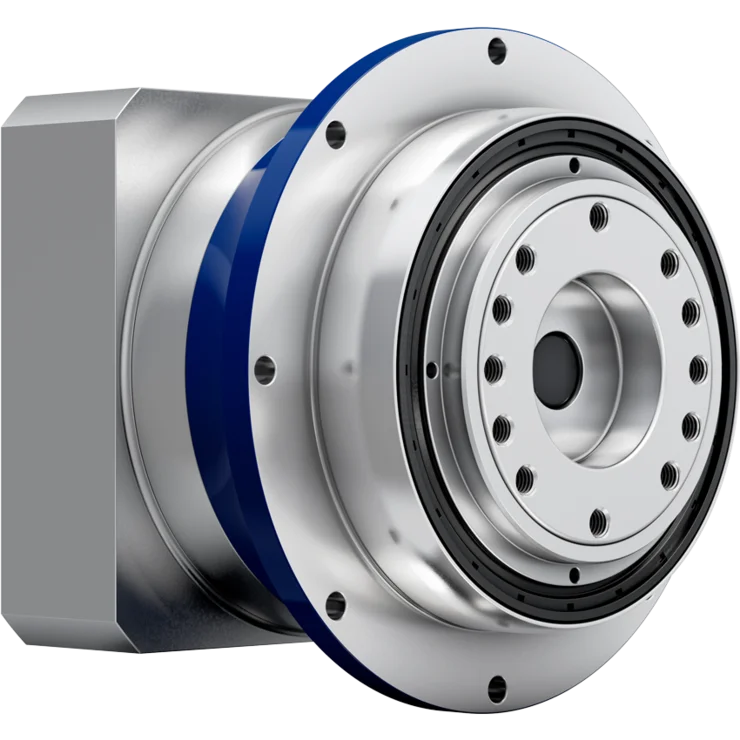

Planetary gearbox

The TP+ gearbox offers maximum performance in a compact design. The standard model is ideal for applications with high positioning accuracy and dynamic cyclic operation. The TP+ HIGH TORQUE is used in high-precision applications where high torsional rigidity is required.

4 – 302.5

Ratio

43 – 22000 Nm

Max. torque

≤ 1 – 3 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Positioning accuracy

High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance

Compactness

High torque density thanks to high performance and short design

Low maintenance

Highest quality standards for a long service life and extended maintenance intervals

Technical details

Product typeTP+TP+ HIGH TORQUE
DesignMFMA
Ratio4 – 10022 – 302.5
Number of sizes78
Max. backlash – Standard c)jt≤ 3 arcmin≤ 1 arcmin
Max. backlash – Reduced c)jt≤ 1 arcmin–
Max. torqueT2α43 – 9600 Nm315 – 22000 Nm
Max. input speedn1Max7500 rpm7500 rpm
Torsional rigidityCt211450 Nm/arcmin3000 Nm/arcmin
Max. tilting momentM2KMax8800 Nm31600 Nm
c) In relation to reference sizes
Product typeTP+TP+ HIGH TORQUE
DesignMFMA
Output shape
Flange✓✓
System output✓✓
Input shape
Motor-mounted✓✓
Self-contained version✓
Characteristic
ATEX (2014/34/EU) a)✓
Food-grade lubrication a) b)✓✓
Corrosion-resistant a) b)✓✓
Optimized mass inertia a)✓✓
System solutions
Linear system (rack / pinion)✓✓
Servo actuator✓✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
Document name Document type Language Downloads
SP+, TP+, HG+, SK+, SPK+, TK+, TPK+, SC+, SPC+, TPC+, VH+, VS+, VT+, DP+, HDP+

Catalog alpha Advanced Line

SP+, TP+, HG+, SK+, SPK+, TK+, TPK+, SC+, SPC+, TPC+, VH+, VS+, VT+, DP+, HDP+

 Brochure /Catalog American English
Download (23 KB) Open in viewer

Replacing the adapter plate / Rear centering TP+ / DP+ / RP+

 Brochure /Catalog Neutral
Download (980 B) Open in viewer

Technical data / Dimension sheets TP+

 Brochure /Catalog Neutral
Download (3 KB) Open in viewer
Technical documents TP+

alpha Advanced Line

Technical documents TP+

 Operating manual Neutral
Download (3 KB) Open in viewer
Operating Manual TP+ ATEX

alpha Advanced Line

Operating Manual TP+ ATEX

 Operating manual (ATEX) Neutral
Download (2 KB) Open in viewer

Ordering code / CAD data TP+

 CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Perfection in a new dimension

Connection of different motor shafts thanks to a wide variety of clamping hub diameters
High smooth running thanks to helical toothing
Maximum torque density thanks to compact design form
Tapered roller bearings for absorbing axial and radial forces

Further Information

FAST LANE

TP+ HIGH TORQUE

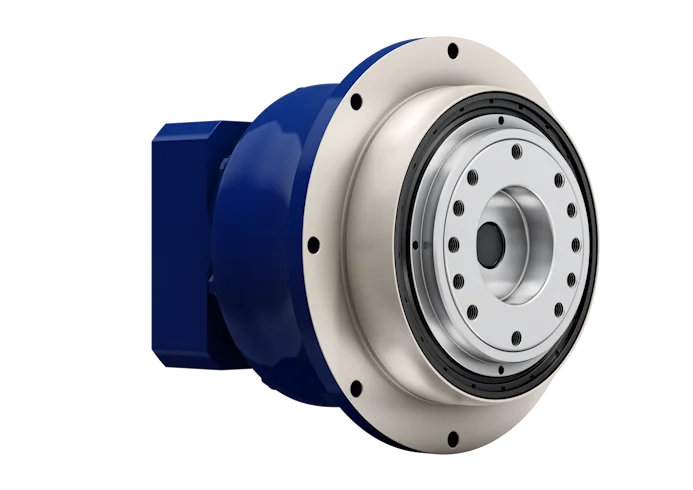

Corrosion-resistant design

Advanced Linear System with TP+

cynapse® & smart services

Short delivery times available for selected product configurations.

Read more

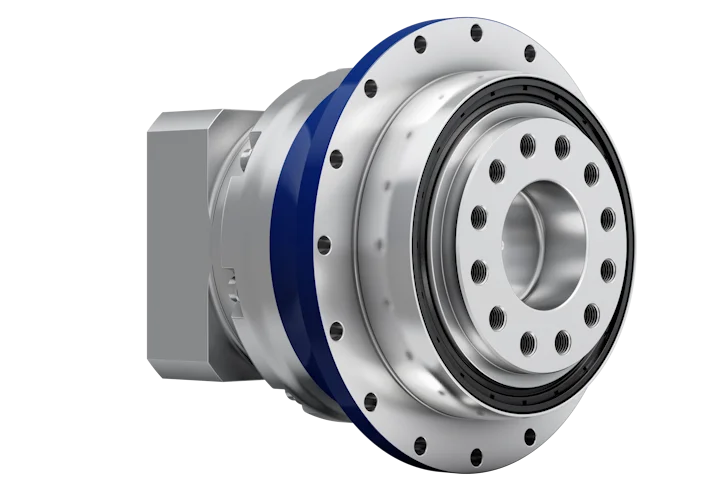

The TP+ HIGH TORQUE enables maximum torque density and maximum torsional rigidity—ideal for demanding applications with dynamic load changes and high positioning accuracy.

alpha Advanced Line gearboxes with increased durability and food-grade lubrication available.

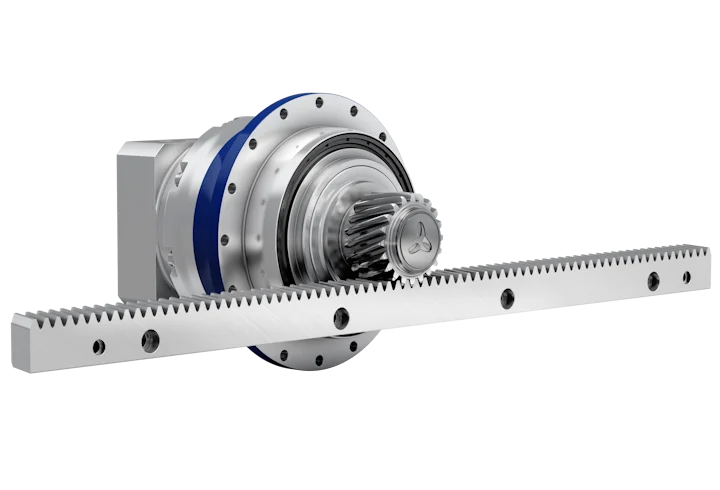

The TP+ for coordinated pinion-rack systems for medium to high requirements. Typical areas of application in wood, plastic, and composite processing, in machining centers, or in automation.

Read more

With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our Smart Services can make your digital production faster, safer, and more efficient.
