alpha Value Line

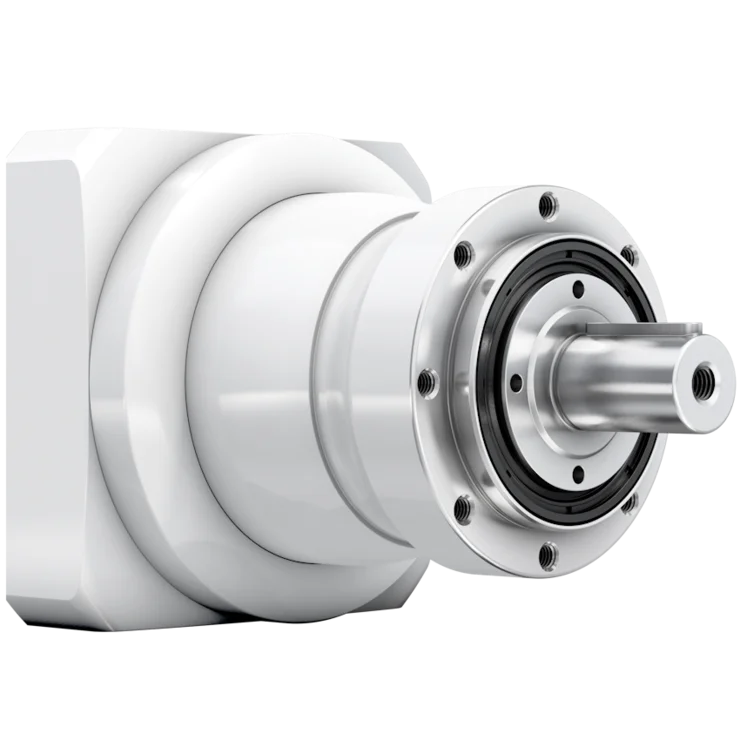

NPL-W

Name: NPL-W
Brand: WITTENSTEIN group

Planetary gearbox

Designed to deliver optimal performance while withstanding mildly corrosive environments, the NPL-W is IP65 rated, with food-grade lubrication and corrosion resistant components. Based on the NPL gearbox from our Value Line, the NPL-W model delivers economical value with application-specific performance.

3 – 100

Ratio

40.8 – 640 Nm

Max. torque

≤ 8 – 10 arcmin

Backlash

Reliable corrosion resistance

Designed for operation in mildly corrosive environments, the NPL-W provides reliable and consistent performance under demanding conditions.

High cost-effectiveness

Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency

Robust and efficient

The NPL planetary gearbox features robust bearings and precise B14 output geometry—delivering reliable performance that impresses. As part of the alpha Value Line, it offers maximum efficiency at an optimal price-performance ratio.

Product type		NPL-W
Design		MF; MA
Ratio		3 – 100
Number of sizes		4
Max. backlash ^c)	j_t	≤ 8 – 10 arcmin
Max. torque	T_2α	40.8 – 640 Nm
Max. input speed	n_1Max	8000 rpm
^c) In relation to reference sizes

Output shape
Smooth shaft	✓
Shaft with key ^d)	✓
Input shape
Motor-mounted	✓
Characteristic
Food-grade lubrication	✓
Corrosion-resistant	✓
System solutions
Linear system (rack / pinion)	✓
Accessory (for more information, see the relevant product pages)
Coupling	✓
^d) Performance reduction: Technical data available upon request; please contact WITTENSTEIN alpha

Document name	Document type	Language	Downloads
Technical data / Dimension sheets NPL-W alpha Value Line – NPL-W Corrosion Resistant Gearbox	Brochure /Catalog	Neutral	Download (4 KB) Open in viewer
alpha Value Line / alpha Basic Line Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK	Operating manual	Neutral	Download (3 KB) Open in viewer
Ordering code / CAD data NPL	CAD / CAE	Neutral	Open in viewer
