Bevel gearbox

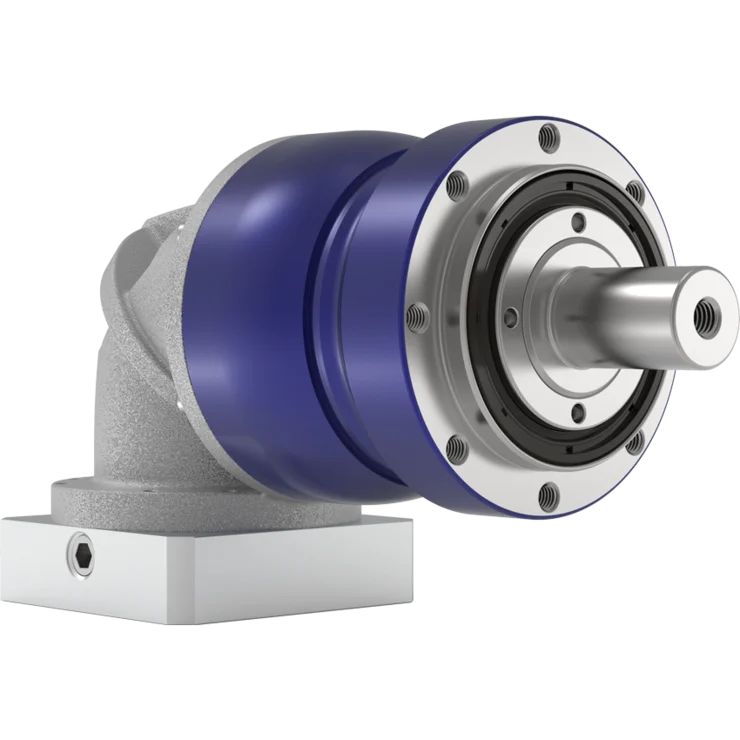

Compact, powerful, flexible – the NPLK bevel gearbox with reinforced bearings and B14 output geometry enables the reliable transmission of high external forces. Thanks to its compact angled step, the NPLK is ideal for use in confined spaces.

3 – 100

Ratio

33 – 700 Nm

Max. torque

≤ 11 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Universally applicable

The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries

High cost-effectiveness

The NPLK bevel gearbox impresses with its low acquisition costs, high operating efficiency and maintenance-free operation over its entire service life

Robust and efficient

The NPLK planetary gearbox impresses with its robust bearings and precise B14 output geometry – for reliable performance that inspires. As part of the alpha Value Line, it offers maximum efficiency at an optimal price-performance ratio.

Technical details

Product typeNPLK
DesignMF
Ratio3 – 100
Number of sizes4
Max. backlash c)jt≤ 11 arcmin
Max. torqueT2α33 – 700 Nm
Max. input speedn1Max5000 rpm
c) In relation to reference sizes
Output shape
Smooth shaft✓
Shaft with key d)✓
Splined shaft (DIN 5480)✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication a) b)✓
System solutions
Linear system (rack / pinion)✓
Accessory (for more information, see the relevant product pages)
Coupling✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
d) Performance reduction: For detailed sizing, please use our cymex® design software
