alpha Value Line

NPSK

Bevel gearbox

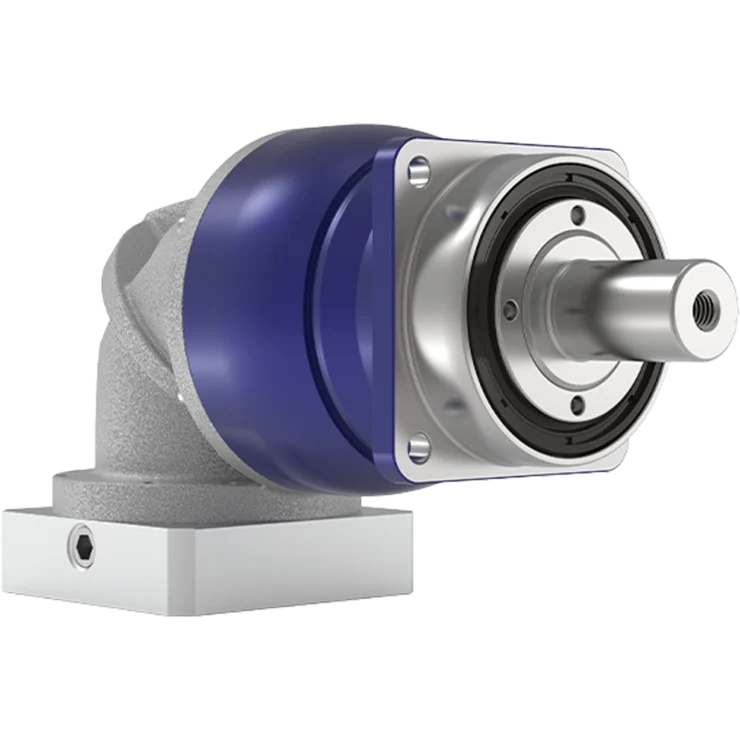

The NPSK bevel gearbox combines the proven SP+ output geometry with a compact and visually appealing angled step. Thanks to its economical acquisition costs and high operating efficiency, it is the ideal solution for cost-conscious applications with high demands on design and performance.

3 – 100

Ratio

33 – 700 Nm

Max. torque

≤ 11 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Universally applicable

The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries

High cost-effectiveness

The NPSK bevel gearbox impresses with its low acquisition costs, high operating efficiency and maintenance-free operation over its entire service life

Increased performance

The NPSK planetary gearbox offers the proven output geometry of the SP+ and enables higher external forces – for maximum efficiency and precision, even in cost-optimized applications

Technical details

Product typeNPSK
DesignMF
Ratio3 – 100
Number of sizes4
Max. backlash c)jt≤ 11 arcmin
Max. torqueT2α33 – 700 Nm
Max. input speedn1Max5000 rpm
c) In relation to reference sizes
Output shape
Smooth shaft✓
Shaft with key d)✓
Splined shaft (DIN 5480)✓
Input shape
Motor-mounted✓
Characteristic
Food-grade lubrication a) b)✓
System solutions
Linear system (rack / pinion)✓
Accessory (for more information, see the relevant product pages)
Coupling✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
d) Performance reduction: For detailed sizing, please use our cymex® design software
Document name Document type Language Downloads
CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV

Catalog alpha Basic Line & alpha Value Line

CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV

 Brochure /Catalog American English
Download (22 KB) Open in viewer
NPK, NPLK, NPSK, NPTK, NPRK

Technical data / Dimension sheets NPK / NPLK / NPSK / NPTK / NPRK

NPK, NPLK, NPSK, NPTK, NPRK

 Brochure /Catalog Neutral
Download (2 KB) Open in viewer
Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK

alpha Value Line / alpha Basic Line

Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK

 Operating manual Neutral
Download (3 KB) Open in viewer

Sealing Plate

Operating manual Neutral
Download (121 B) Open in viewer

Ordering code / CAD data NPSK

CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Proven geometry in a compact format

Compatible with all common servo motors – thanks to screwed adapter plate and large selection of motor shaft diameters
The particularly compact angle step allows insertion even in minimal installation spaces
The beautifully designed housing emphasizes the dynamics of the gearbox and adds visual accents
Wide range of ratios from i = 3 to i = 100 – for maximum application versatility
A wide range of options for maximum adaptability:
• Smooth shaft
• Shaft with key
• Splined shaft according to DIN 5480

Further Information

cynapse® & smart services

Accessories

With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our smart services can make your digital production faster, safer, and more efficient.

Read more

Optimization of your value chain: Utilize the combination of gearboxes and accessories in a complete package to streamline your internal processes. Find suitable elastomer couplings for our products.

Read more
