alpha Value Line

NPL

Name: NPL
Brand: WITTENSTEIN group

Planetary gearbox

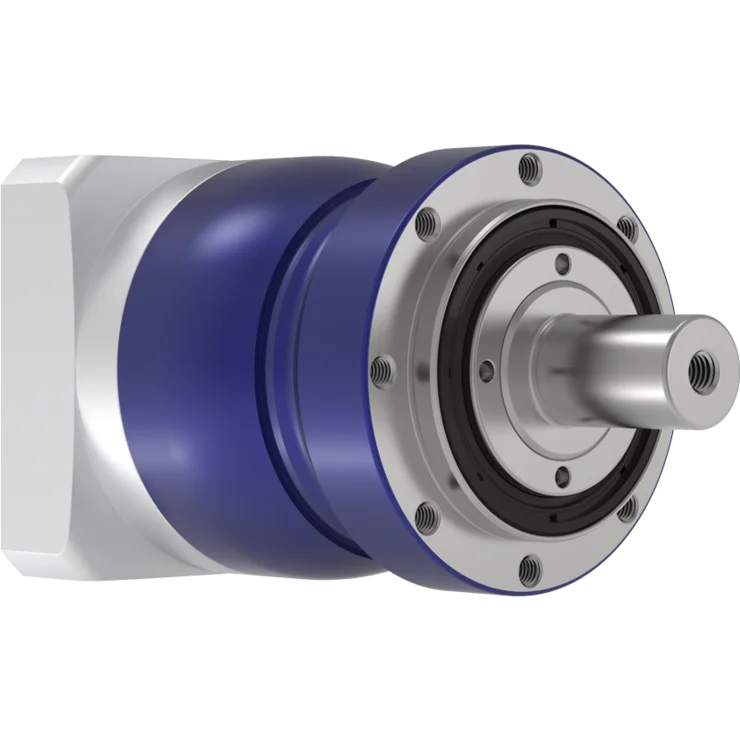

The NPL planetary gearbox impresses with its reinforced bearings and proven B14 output geometry – ideal for applications with increased demands on stability and connection diversity. As part of the alpha Value Line, it also offers highly efficient, maintenance-free performance over its entire service life.

3 – 100

Ratio

51 – 800 Nm

Max. torque

≤ 8 arcmin

Backlash

Universally applicable

The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries

High cost-effectiveness

Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency

Robust and efficient

The NPL planetary gearbox features robust bearings and precise B14 output geometry—delivering reliable performance that impresses. As part of the alpha Value Line, it offers maximum efficiency at an optimal price-performance ratio.

Product type		NPL
Design		MF; MA
Ratio		3 – 100
Number of sizes		4
Max. backlash ^c)	j_t	≤ 8 arcmin
Max. torque	T_2α	51 – 800 Nm
Max. input speed	n_1Max	8000 rpm
^c) In relation to reference sizes

Output shape
Smooth shaft	✓
Shaft with key ^d)	✓
Splined shaft (DIN 5480)	✓
Input shape
Motor-mounted	✓
Characteristic
Food-grade lubrication ^{a) b)}	✓
System solutions
Linear system (rack / pinion)	✓
Accessory (for more information, see the relevant product pages)
Coupling	✓
^a) Performance reduction: Technical data available on request ^b) Please contact WITTENSTEIN alpha ^d) Performance reduction: For detailed sizing, please use our cymex^® design software

Document name	Document type	Language	Downloads
Catalog alpha Basic Line & alpha Value Line CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPSK, NPTK, NPRK, CVS, CVH, NVS, NVH, HDV	Brochure /Catalog	American English	Download (22 KB) Open in viewer
Technical data / Dimension sheets NP / NPL / NPS / NPT / NPR / NTP NP, NPL, NPS, NPT, NPR, NTP	Brochure /Catalog	Neutral	Download (6 KB) Open in viewer
alpha Value Line / alpha Basic Line Technical documents CP, CPS, CPK, CPSK, NP, NPL, NPS, NPT, NPR, NTP, NPK, NPLK, NPTK, NPRK	Operating manual	Neutral	Download (3 KB) Open in viewer
Sealing Plate	Operating manual	Neutral	Download (121 B) Open in viewer
Ordering code / CAD data NPL	CAD / CAE	Neutral	Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300

To the contact form

Value Linear System with NPL

cynapse^® & smart services

Accessories

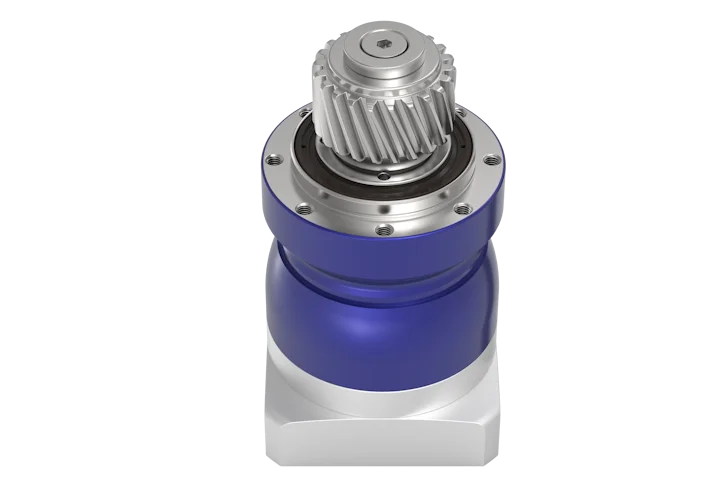

The NPL for coordinated pinion-rack systems for simple requirements. Typical areas of application include woodworking machines, plasma cutting systems, and automation.
