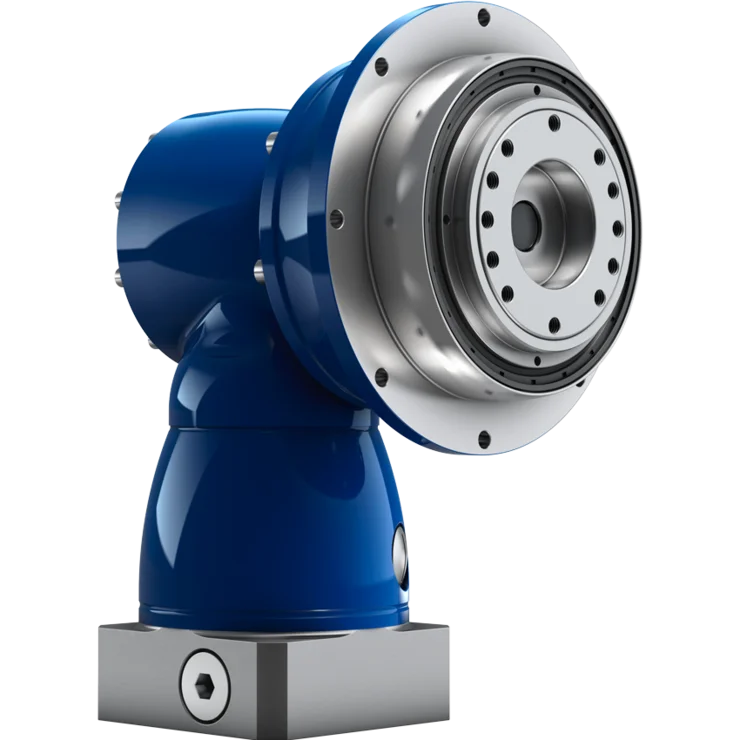

alpha Advanced Line
TPK+
Hypoid gearbox
The low-backlash hypoid gearbox with TP+-compatible output flange. Thanks to its axially short design, the TPK+ gearbox series is used in compact machines. It impresses with its high power density combined with maximum precision, torque and efficiency. The TPK+ HIGH TORQUE gearboxes offer even higher torques and torsional rigidity and therefore achieve the highest power density.
12 – 10000
Ratio
80 – 10450 Nm
Max. torque
≤ 1.3 – 4 arcmin
Backlash
Compactness
High torque density thanks to high performance and short axial length
Flexibility
Broad modular system of variable (also rear) output connections and various gear ratio combinations
Consistently smooth running
Constant backlash and low operating noise over the entire gearbox service life
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 Catalog alpha Advanced Line SP+, TP+, HG+, SK+, SPK+, TK+, TPK+, SC+, SPC+, TPC+, VH+, VS+, VT+, DP+, HDP+ | Brochure /Catalog | American English | |
 Technical data / Dimension sheets TK+ / TPK+ TK+, TPK+ | Brochure /Catalog | Neutral | |
 alpha Advanced Line Technical documents TP+ | Operating manual | Neutral | |
 Sealing Plate | Operating manual | Neutral | |
Ordering code / CAD data TPK+ | CAD / CAE | Neutral |
Contact us
Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.
Space-saving angular precision with output flange
Further Information
The diverse output options of hypoid gearboxes offer flexible options for application connection, from shafts to splined shafts to hollow shaft interfaces.

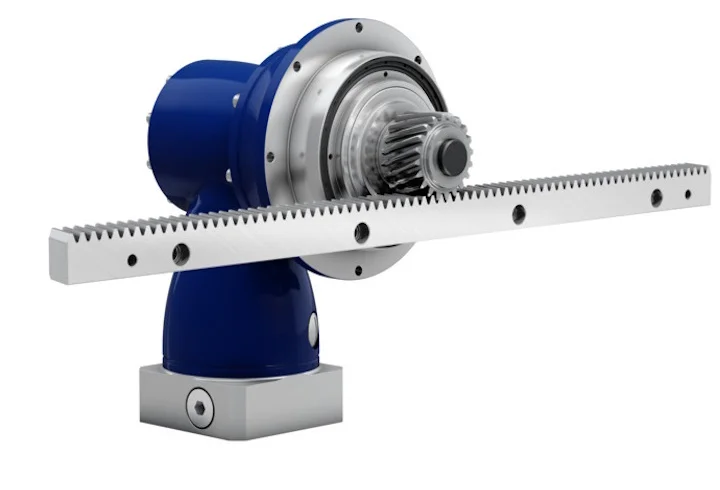

The TPK+ for coordinated pinion-rack systems for medium to high requirements. Typical areas of application in wood, plastic, and composite processing, in machining centers, or in automation.

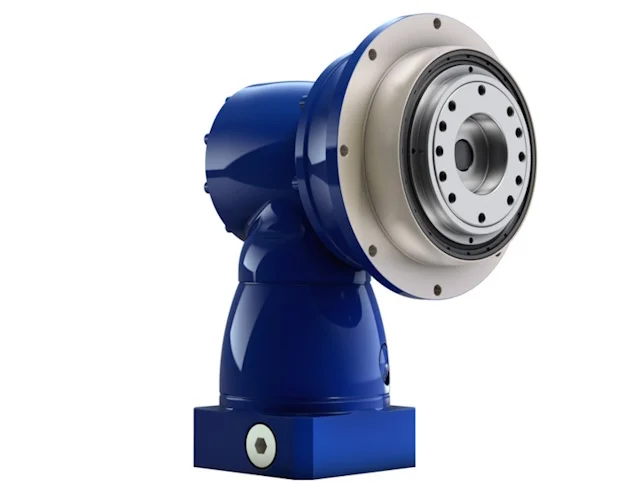

alpha Advanced Line gearboxes with increased durability and food-grade lubrication available.
With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our smart services can make your digital production faster, safer, and more efficient.
Optimize your value chain: Utilize the combination of gearboxes and accessories in a complete package to streamline your internal processes. Find the right metal bellows couplings for our products.
