Name: TPM+ DYNAMIC
Brand: WITTENSTEIN group

Servo actuator

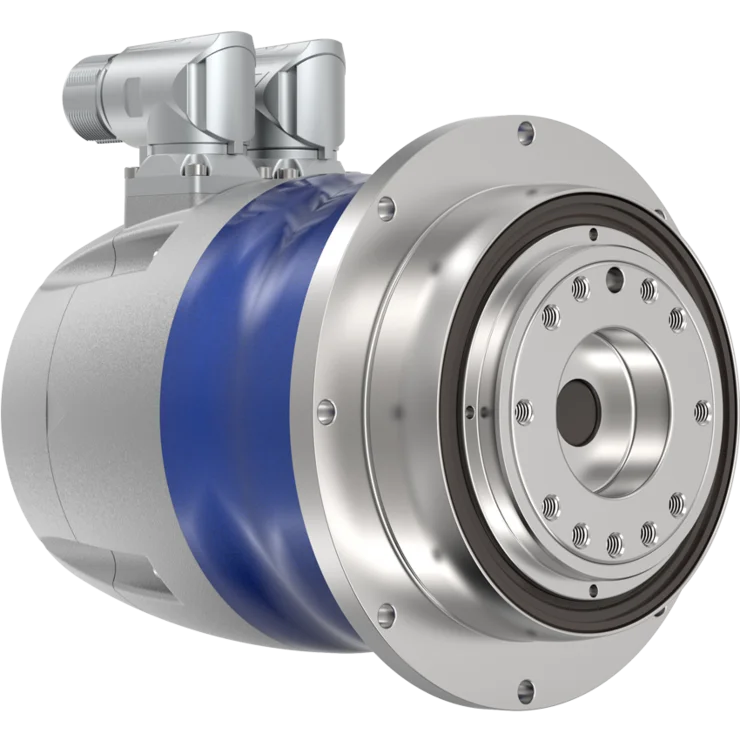

The ^TPM+ DYNAMIC servo actuator combines modern motor technology with high power density, low inertia and optimum torsional rigidity. The clutch-free connection between the motor and gearbox and the compact design allow the overall length to be reduced by over 50%. Helically toothed precision planetary gearboxes ensure low-vibration and low-noise operation.

16 – 91

Ratio

30 – 1300 Nm

Max. torque

≤ 1 – 3 arcmin

Backlash

Small footprint

The short installation length of the servo actuators helps to make the machine design more compact

Higher efficiency

The low moment of inertia and high power density result in improved utilization of the energy supplied

Increased productivity

The increased rigidity and dynamics achieve a higher output in your machine

Product type		TPM⁺DYNAMIC
Ratio		16 – 91
Number of sizes		5
Max. backlash ^c)	j_t	≤ 1 – 3 arcmin
Max. acceleration torque	T_2b	1300 Nm
Max. output speed	n_2Max	375 rpm
Torsional rigidity	C_t21	465 Nm/arcmin
Max. tilting moment	M_2KMax	3280 Nm
Operating voltage	U_D	320 V; 560 V
^c) In relation to reference sizes

Holding brake	✓
Output shape
Flange	✓
System output	✓
Characteristic
Food-grade lubrication ^{a) b)}	✓
Corrosion-resistant ^{a) b)}	✓
System solutions
Linear system (rack / pinion)	✓
Accessory (for more information, see the relevant product pages)
Coupling	✓
Power cable, signal cable, hybrid cable	✓
^a) Performance reduction: Technical data available on request ^b) Please contact WITTENSTEIN alpha
