alpha Advanced Line

TPM⁺ POWER

Name: TPM+ POWER
Brand: WITTENSTEIN group

Servo actuator

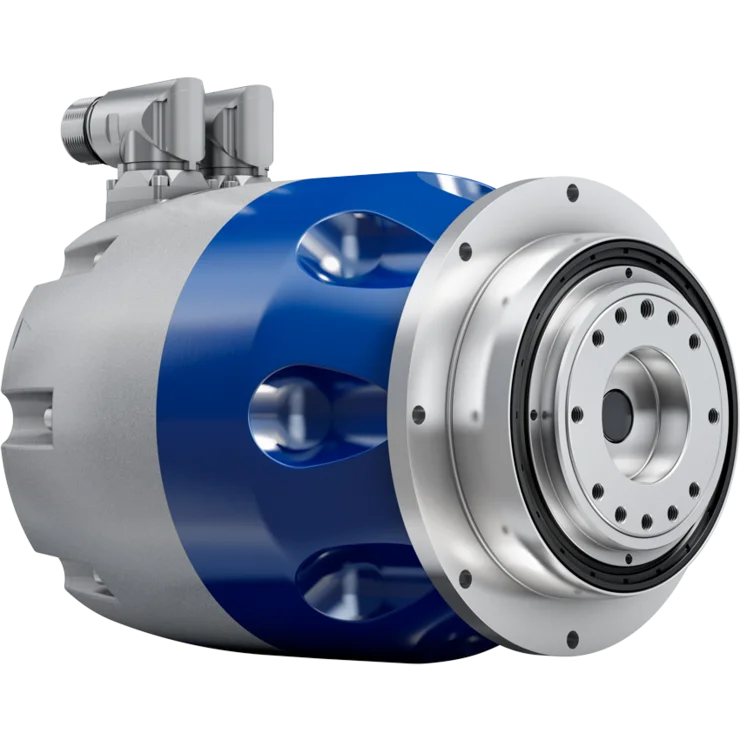

The TPM⁺ POWER servo actuator is the powerful combination of motor and planetary gearbox and enables high torques and reliable performance. Thanks to the compact design and integration of the individual components, the unit is up to 40% more compact. Helically toothed gearboxes ensure quiet and low-vibration operation.

4 – 100

Ratio

15 – 750 Nm

Max. torque

≤ 1 – 3 arcmin

Backlash

Lower noise emission

The helically toothed precision planetary gearboxes for extremely low-vibration and quiet operation ensure the necessary quietness at work

Increased productivity

The extra power and power density ensure a higher output from your machine

Small footprint

The short installation length of the servo actuators helps to make the design of your machine and system more compact

Product type		TPM⁺ POWER
Ratio		4 – 100
Number of sizes		4
Max. backlash ^c)	j_t	≤ 1 – 3 arcmin
Max. acceleration torque	T_2b	750 Nm
Max. output speed	n_2Max	1500 rpm
Torsional rigidity	C_t21	190 Nm/arcmin
Max. tilting moment	M_2KMax	1335 Nm
Operating voltage	U_D	320 V; 560 V
^c) In relation to reference sizes

Holding brake	✓
Output shape
Flange	✓
System output	✓
Characteristic
Food-grade lubrication ^{a) b)}	✓
Corrosion-resistant ^{a) b)}	✓
System solutions
Linear system (rack / pinion)	✓
Accessory (for more information, see the relevant product pages)
Coupling	✓
Power cable, signal cable, hybrid cable	✓
^a) Performance reduction: Technical data available on request ^b) Please contact WITTENSTEIN alpha
