alpha Premium Line

XPK+

Hypoid gearbox

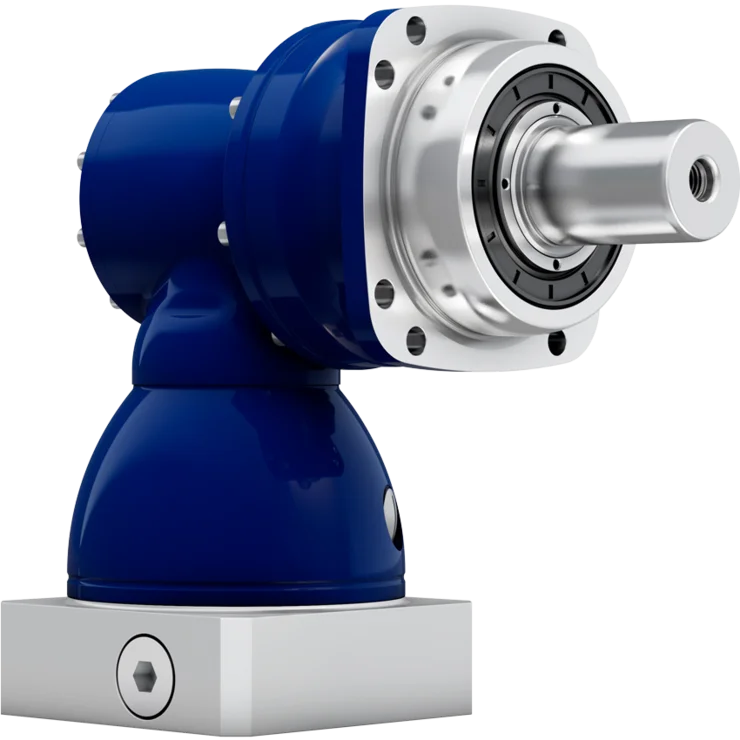

The XPK+ hypoid gearbox impresses with its wide range of gear ratios, high axial and radial forces and high torsional rigidity. It offers the highest performance in the smallest installation space.

12 – 1000

Ratio

80 – 2520 Nm

Max. torque

≤ 2 – 4 arcmin

Backlash

Technical details
Further information
Related products
Request consultation
Productivity

Highest torque density and rigidity shorten your cycle time

Compactness

The axially short, right-angled design enables even more compact machine concepts

Process quality

Consistently low torsional backlash over the entire gearbox service life and high torsional rigidity enable maximum positioning accuracy

Technical details

Product typeXPK+
DesignMF
Ratio12 – 1000
Number of sizes4
Max. backlash c)jt≤ 2 – 4 arcmin
Max. torqueT2α80 – 2520 Nm
Max. input speedn1Max7500 rpm
Torsional rigidityCt21226 Nm/arcmin
Max. tilting momentM2KMax3256 Nm
c) In relation to reference sizes
Output shape
Smooth shaft✓
Shaft with key d)✓
Splined shaft (DIN 5480)✓
Blind hollow shaft✓
System output✓
Input shape
Motor-mounted✓
Characteristic
Flange with slotted holes✓
Food-grade lubrication a) b)✓
System solutions
Linear system (rack / pinion)✓
Accessory (for more information, see the relevant product pages)
Coupling✓
Shrink Disk✓
a) Performance reduction: Technical data available on request
b) Please contact WITTENSTEIN alpha
d) Performance reduction: For detailed sizing, please use our cymex® design software
Document name Document type Language Downloads
XP+, RP+,XPK+, RPK+, XPC+, RPC

Catalog alpha Premium Line

XP+, RP+,XPK+, RPK+, XPC+, RPC

 Brochure /Catalog American English
Download (17 KB) Open in viewer
XPK+, RPK+

Technical data / Dimension sheets XPK+ / RPK+

XPK+, RPK+

 Brochure /Catalog American English
Download (1 KB) Open in viewer
Technical documents XP+ / XPC+ / XPK+

alpha Premium Line

Technical documents XP+ / XPC+ / XPK+

 Operating manual Neutral
Download (3 KB) Open in viewer

Sealing Plate

Operating manual Neutral
Download (121 B) Open in viewer

Ordering code / CAD data XPK+

 CAD / CAE Neutral
Open in viewer

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Power and precision in a compact design

Highest toothing quality results in minimal torsional backlash and maximum torque density
Specially designed output for very high torque transmission, enables receptacle for high tilting moments
Multiple output options
Optionally available with R-flange
Use of a metal bellows coupling for thermal length compensation and protection of the motor bearing
High-quality hypoid stage with gear ratios of i = 3 - 10 in the angular stage

Further Information

The R-flange sets the standard

Premium Linear System with XPK+

cynapse® & smart services

Accessory

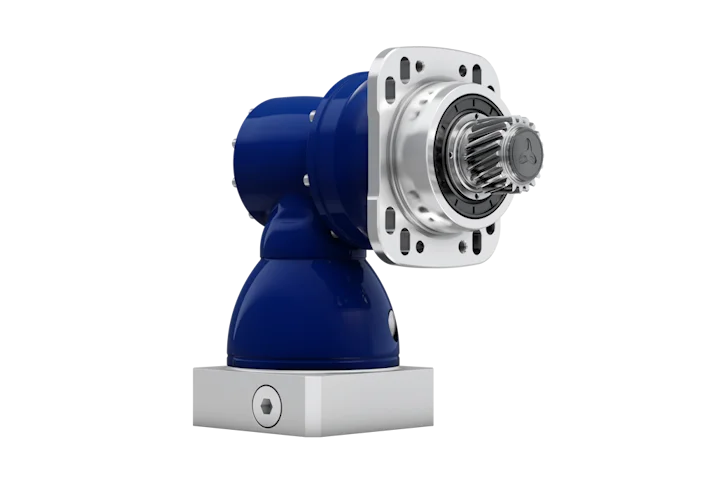

The R-flange is available as an option for the XPK+. The slotted holes integrated into the gearbox flange allow easy adjustment of the gearbox with the pinion mounted on the rack.

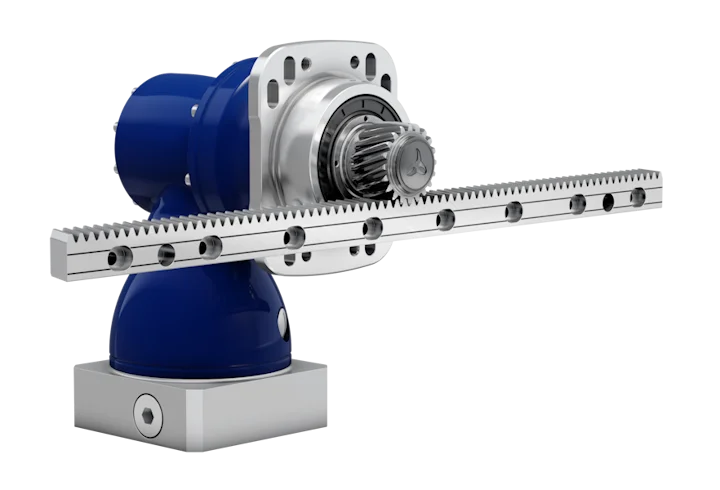

The XPK+ for perfectly matched rack and pinion systems for high to very high demands. Typical areas of application are laser machines, wood, plastic, and composite material processing centers, cutting machine tools, e.g., HSC milling machines, as well as highly dynamic and precise handling applications.
