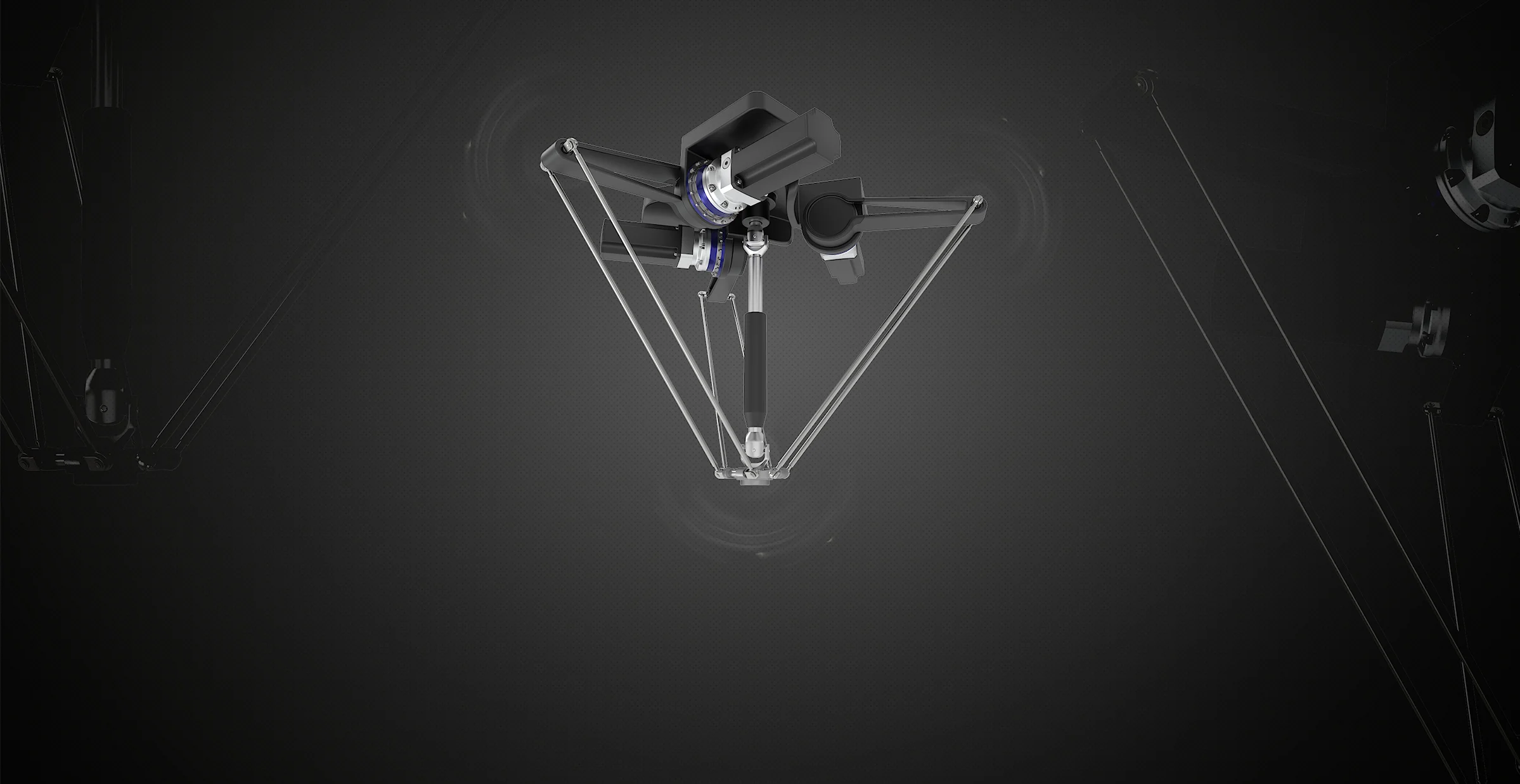

Gears & Servo Actuators for Delta Robots

For over fifteen years, WITTENSTEIN has been developing customized gearbox and servo actuator solutions for Delta robots. Thanks to our engineering expertise and a high-performance product portfolio, we guarantee technically and economically optimal drive designs for highly dynamic motion profiles. We are constantly expanding our portfolio with new, customized drive solutions for your robot concept.

Advantages of WITTENSTEIN's drive solutions

Reliability

High reliability of the gearboxes prevents costly machine downtime.

Positioning accuracy

Low torsional backlash and high torsional rigidity ensure maximum positioning accuracy at the tool center point.

Speed

High speed increases machine output.

Low maintenance

The highest quality standards for a long service life and extended maintenance intervals.

Consistently high performance

Consistent torsional backlash throughout the gearbox's service life for consistently high performance.

Low inertia

Further reduction in inertia through the use of a servo actuator.

Wide range of applications

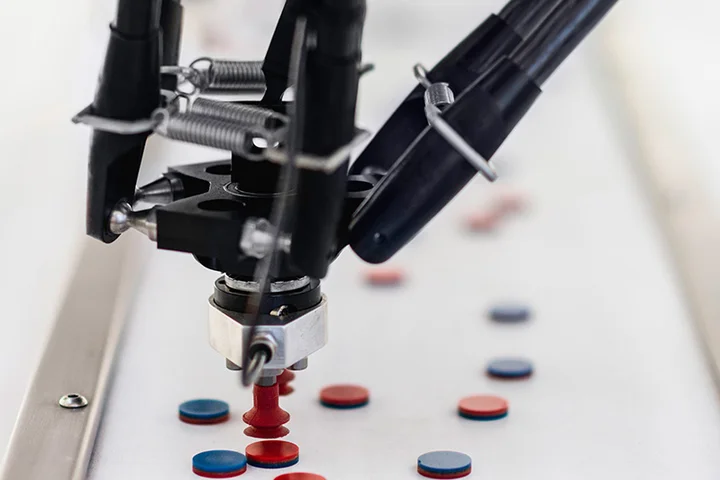

Dry area

For applications such as secondary packaging, end packaging, handling, adhesive bonding, assembly, and intralogistics. Available with either standard or food-grade lubrication (NSF). Take advantage of fast availability—with speedline^®, even within 24 hours.

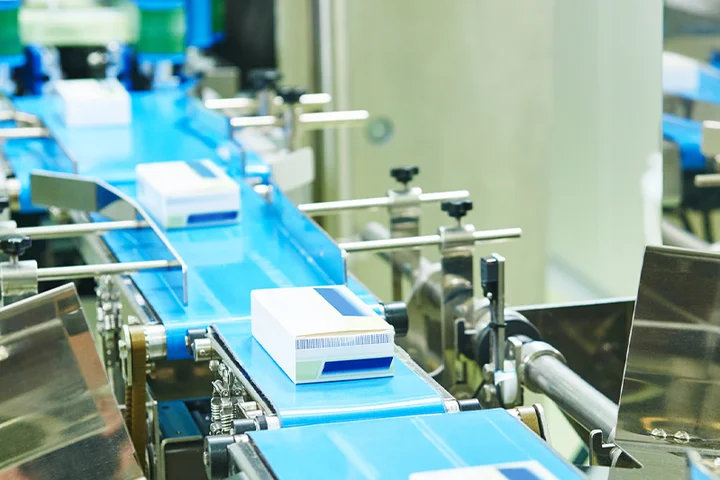

Spray area (close to the process)

Ideal for process-critical applications in packaging, pharmaceuticals, medical devices, and cleanrooms. Corrosion resistant, without paint or stickers. Comes standard with NSF-certified lubrication. Protection against splashing water (IP65), surface rust, and oxidation, as well as easy cleaning.

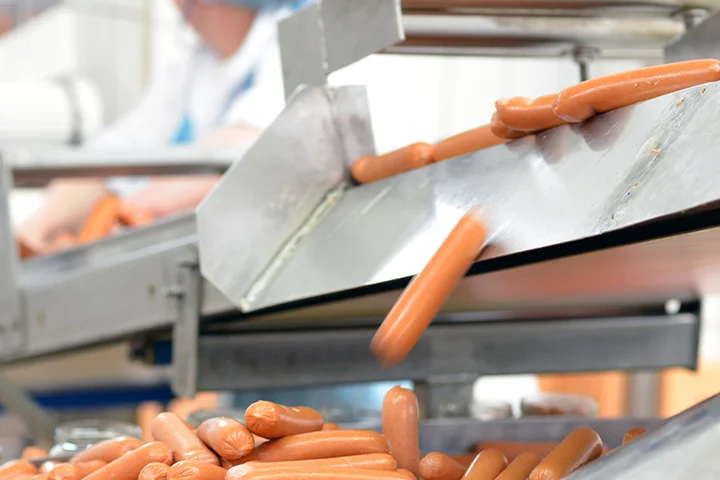

Wet area (integrated in the process)

For hygienic primary packaging in direct contact with food. Protection class IP69K, CIP/SIP-compatible, without dead spaces, with a high-quality surface finish. Resistant to aggressive cleaning agents. Fast, safe cleaning and new design flexibility.

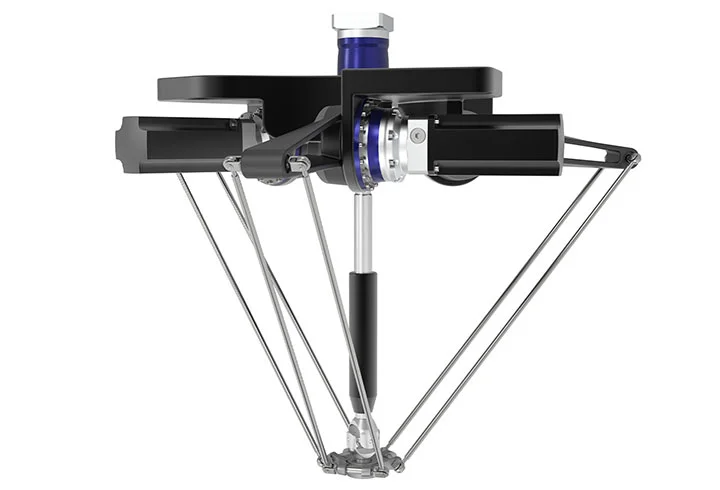

Top arm drive

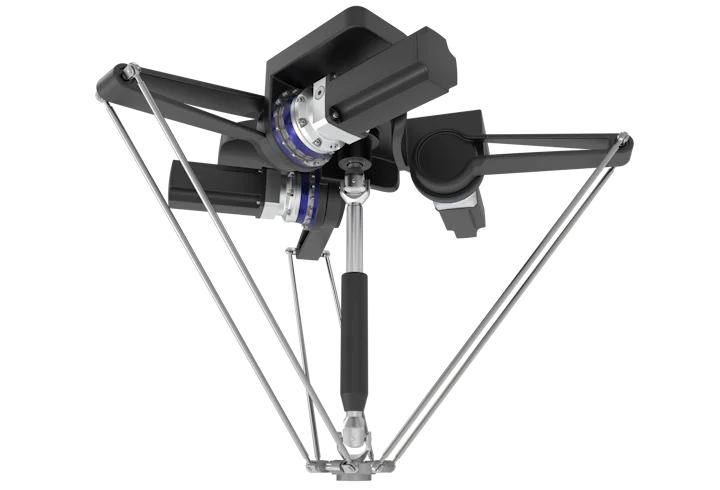

Rotating axis drive (top)

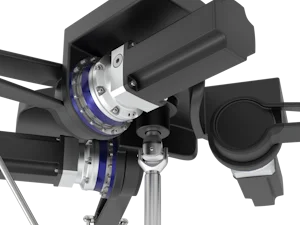

Rotating axis drive (bottom)

WITTENSTEIN's top arm actuators offer maximum dynamics and a long service life thanks to an optimized sealing design and reduced mass moments of inertia.

Discover our products

In this version of the Delta robot, the tool center point is controlled via a central fourth axis. WITTENSTEIN offers a wide range of planetary, right-angle, and servo actuator solutions for this purpose.

Discover our products

In this version of the Delta robot, the rotational axis is driven directly at the tool center point. WITTENSTEIN offers high-performance drives with low weight for this purpose.

Discover our products

Delta robots: Top arm drives

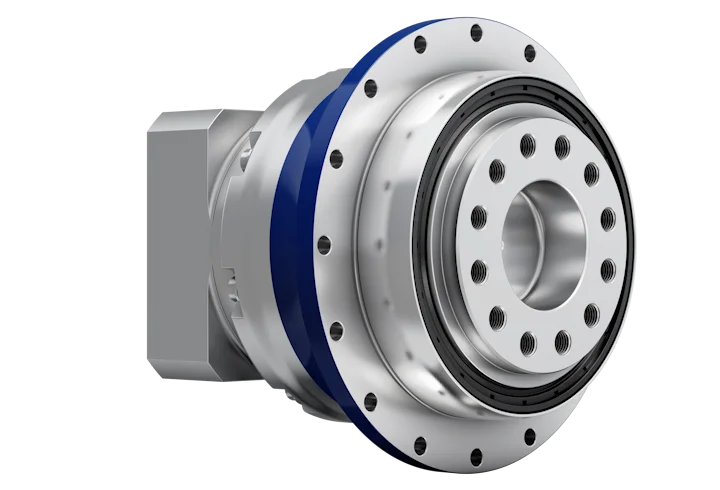

DP⁺

alpha Advanced Line

Designed for Delta applications, this planetary gearbox is available in four standard sizes and covers a gear ratio range of i=16–55. An optimized sealing design and reduced mass moments of inertia ensure optimal performance in terms of dynamics and durability.

DP+ for industrial applications (S)
DP+ with food-grade lubrication (F)
DP+ in a corrosion resistant version (W)

More

HDP⁺

alpha Advanced Line

The HDP+ planetary gearbox is designed in accordance with EHEDG guidelines for use in direct contact with food.

It is specifically designed for use in delta robots and covers a gear ratio range of i=16–55.

More

premo^® TP Line

alpha Advanced Line

The servo actuator consists of a precision planetary gearbox with gear ratios ranging from 16 to 55 and a brushless synchronous servo motor. premo^® is characterized by higher productivity and optimal energy efficiency.

More

DP⁺

HDP⁺

premo^® TP Line

Production requirements

Challenges for Mechanical Engineers

Requirements for inputs and components

Production environments require compact, energy-efficient robots that offer high speed, precision, and flexibility. Lightweight construction, protection class, and safety are just as critical as a small footprint and maximum productivity.

Machine builders face the challenge of developing modular, space-saving, and high-performance systems. In doing so, they must meet increasing demands for safety, efficiency, and adaptability while simultaneously reducing costs.

Drives and components must be compact, lightweight, and energy-efficient. At the same time, high dynamics, precision, and reliability are required. Protection class, low-maintenance design, and integration into smart systems play a key role.

Delta robots - Rotating axis drive at the top

NP

alpha Value Line

Depending on the precision requirements, WITTENSTEIN alpha offers a comprehensive range of planetary gearboxes for the upper rotation axis.

More

NPK

alpha Value Line

Depending on the precision requirements, WITTENSTEIN alpha offers a comprehensive portfolio of right-angle gearboxes and servo actuator solutions for the upper rotational axis.

More

SP⁺

alpha Advanced Line

Depending on the precision requirements, a comprehensive range of planetary gearboxes or WITTENSTEIN alpha units is available for the upper rotation axis.

More

SPK⁺

alpha Advanced Line

Depending on the precision requirements, WITTENSTEIN alpha offers a comprehensive range of right-angle gearboxes for the upper rotation axis.

More

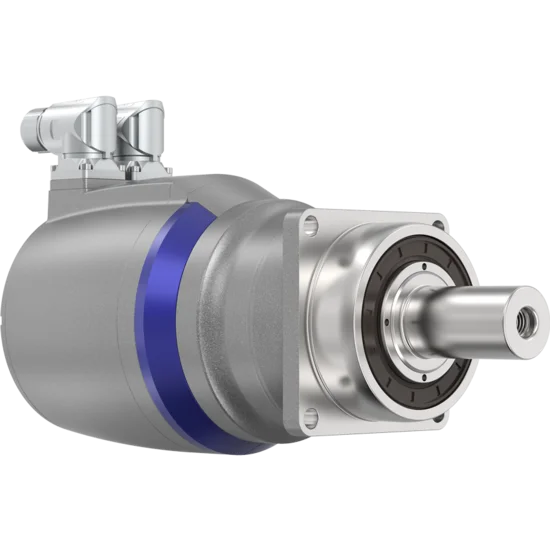

premo^® SP Line

alpha Advanced Line

The servo actuator consists of a precision planetary gearbox with gear ratios ranging from 16 to 55 and a brushless synchronous servo motor. premo® is characterized by higher productivity and optimal energy efficiency.

More

NP

NPK

SP⁺

SPK⁺

premo^® SP Line

Download brochure

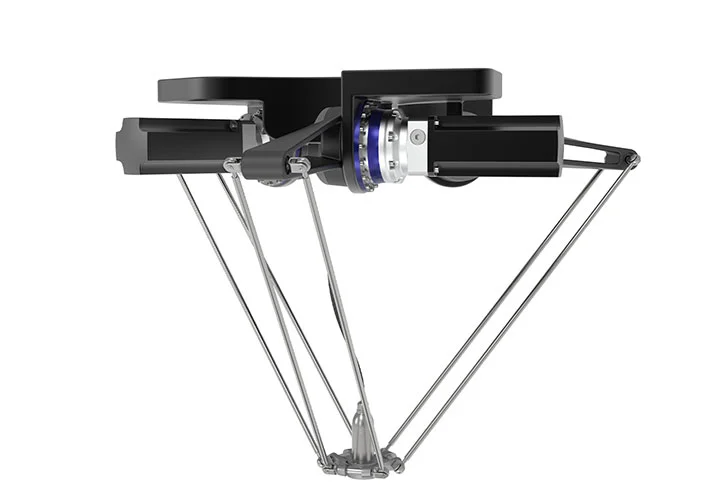

Delta robot - Rotating axis drive at the bottom

cyber^® dynamic line

The industrial-grade small servo motors of the cyber^® dynamic line are available in 5 sizes and cover a power range of 7–477 watts. Version: standard design.

More

premo^® TP Line

alpha Advanced Line

The servo actuator consists of a precision planetary gearbox with gear ratios ranging from 16 to 55 and a brushless synchronous servo motor. premo® is characterized by high productivity and optimal energy efficiency.

More

cyber^® dynamic line

premo^® TP Line

Hygienic Design for process-integrated areas

Integration into a system designed according to Hygienic Design principles
Legal requirements are met (machinery directive, Food Hygiene Regulation)
Simpler manufacturing/assembly due to fewer single parts
Enables more compact machine designs
Higher overall system efficiency
Innovations / Competitive advantage

Mehr zu Hygienic Design

WITTENSTEIN offers custom-designed drive components for delta robots—tailored to your specific requirements and applications. Whether for process integration, high hygiene standards, or other demanding applications: Our solutions are as unique as your applications.

Thanks to our process-oriented axes and optimized gearboxes, we guarantee consistently high performance and reliability over the entire service life. Quality, precision, and innovation are at the heart of everything we do—unmistakably WITTENSTEIN.

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300

To the contact form

Gearboxes and servo actuators for Delta robots

Over 15 years of experience in drive technology for Delta robots

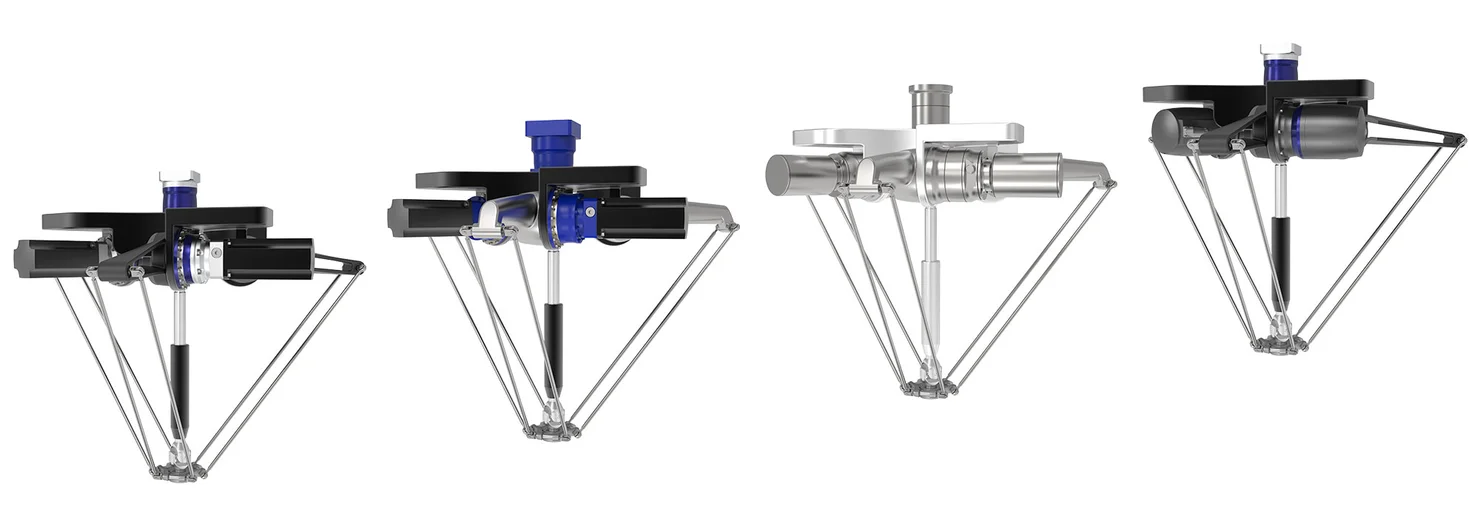

Types of Delta robots
