Galaxie^® GH

Name: Galaxie® GH
Brand: WITTENSTEIN group

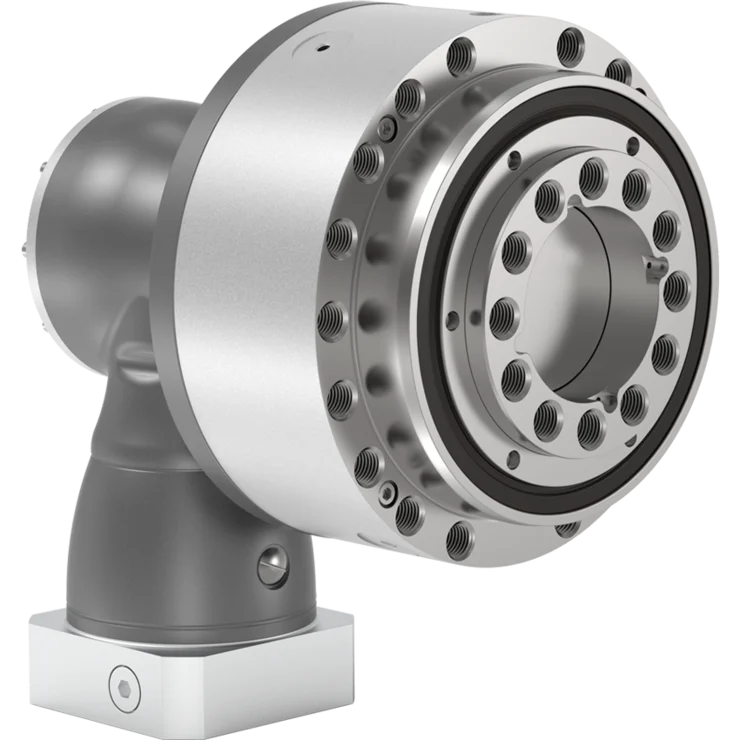

Galaxie^® GH gearbox

The Galaxie^® GH gearbox offers maximum flexibility for integration into complex machine concepts. Thanks to the integrated angled step, the mounting position can be variably adjusted – ideal for confined installation spaces or special design requirements. At the same time, the GH impresses with its proven Galaxie^® kinematics with flat tooth engagement, high torque density and an optional large hollow shaft for applications with media or shafts. This makes the Galaxie^® GH the ideal solution for sophisticated automation and robotic systems with high demands on precision and freedom of installation.

72 – 240

Ratio

1086 – 4050 Nm

Max. torque

0 arcmin

Backlash

Highest precision

Maximum rigidity

Optimized installation space

		Galaxie^® robustness line
		110	135	175
Variant		GH	GH	GH
Outer diameter¹	D [mm]	160	191	241
Length²	I [mm]	215	260	302
Max. acceleration torque³	T_2B [Nm]	1086	1800	4050
Max. output speed³	n_2max[rpm]	95	80	61
Nominal output torque³ @ n_2N	T_2N [Nm]	450	750	1685
Nominal output speed³ @ T_2N	n_2N [rpm]	23	20	15
Emergency stop torque³	T_2Not[Nm]	3000	5400	12000
Torsional rigidity³	C_t21 [Nm/arcmin]	370	650	1400
Ratio⁴	i	72 - 240
¹ Without connectors / varies depending on mounting position ² Without cooling connectors / varies depending on pre-stage and motor-dependent adapter plate ³ values are subject to variations due to factors beyond our control ⁴ output rotates in opposite direction to input Technical data not binding; specified values only valid with hollow shaft version/MF3 (with additional coaxial preliminary stage) on request

Note

Optional hollow shaft with hypoid pre-stage. Ratios up to i = 2400 can be realized with additional coaxial pre-stage (no hollow shaft). Adapter plate and motor shaft coupling configurable for all common industrial motors.

Typical applications

A/B/C axis for precise positioning in machine tools, mechanical drive and assembly systems, such as positioning tasks and wafer handling.
