Galaxie® GS

Galaxie® GS gearbox

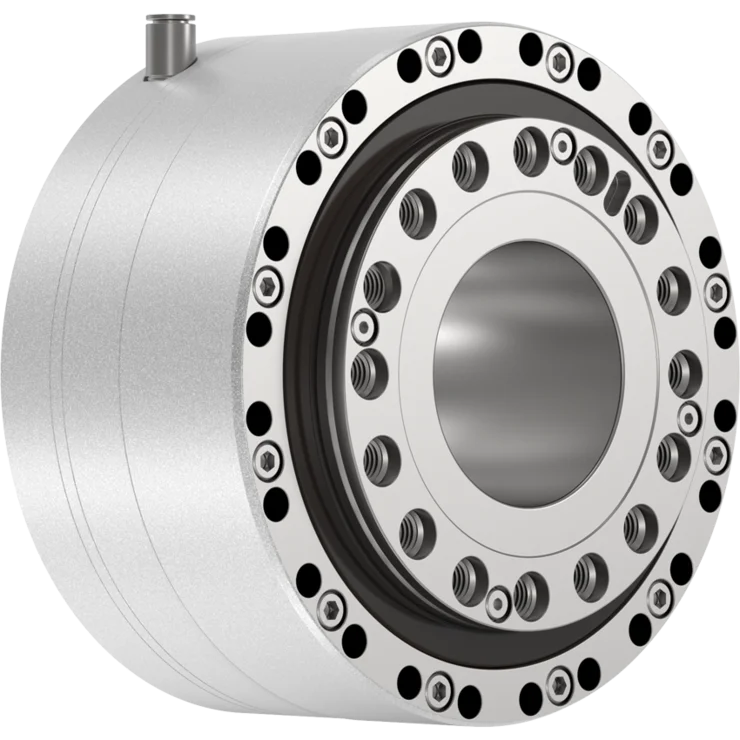

The Galaxie® GS gearbox combines a compact design with exceptional design freedom. The integrated, particularly large hollow shaft enables cables, media or shafts to be fed through easily, creating ideal conditions for complex system integration. At the same time, the innovative kinematics with flat power transmission ensure high torque capacity, maximum rigidity and permanent zero backlash. The Galaxie® GS is therefore predestined for applications where space saving, technical flexibility and maximum precision are crucial – for example in robotics, medical technology or mechanical engineering.

24 – 31

Ratio

350 – 6000 Nm

Max. torque

0 arcmin

Backlash

Technical details
Customized solutions
Related products
Request consultation
Highest precision
Maximum rigidity
Hollow shaft size

Technical details

Galaxie® robustness lineGalaxie® accuracy line
110135175120190300
VariantGSGSGSGSGSGS
Outer diameter1D [mm]160191241122193304
Hollow shaft diameterd [mm]3345574472117
Length2I [mm]14516121383.6128.5183
Max. acceleration torque3T2B [Nm]10861800405035015006000
Max. output speed3n2max [rpm]9580611258050
Nominal output torque3 @ n2NT2N [Nm]45075016851907503000
Nominal output speed3 @ T2Nn2N [rpm]232015604025
Emergency stop torque3T2Not [Nm]3000540012000700300012000
Torsional rigidity3Ct21 [Nm/arcmin]37065014001556252500
Max. lateral forceF1Q(SF1) [N]21504500585060019804100
Ratio4i-2431
Sizes 085 on request
1 Without connectors / varies depending on mounting position
2 Without cooling connectors
3 values are subject to variations due to factors beyond our control
4 with negative gear ratio, output turns in opposite direction to input; with positive gear ratio, output turns in same direction as input
Galaxie® robustness line series: Technical data valid without water cooling
Galaxie® accuracy line series: Technical data valid with water cooling
Technical data for reference only
