Miniaturized Galaxie®

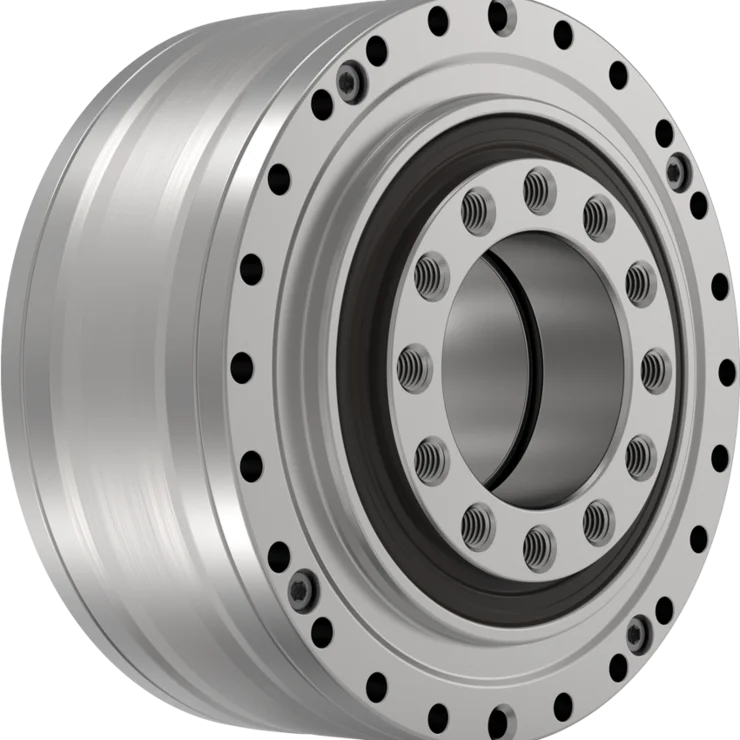

Miniaturized Galaxie® gearbox

The miniaturized Galaxie® gearbox combines maximum precision with a compact design. The innovative kinematics result in almost complete surface contact during power transmission – for maximum torque density and rigidity. The large hollow shaft offers design freedom, while the permanent zero backlash and high overload capacity ensure reliable performance. Ideal for machine and robotics applications where compactness and maximum accuracy are required.

60 – 61

Ratio

150 – 250 Nm

Max. torque

0 arcmin

Backlash

Technical details
Customized solutions
Related products
Request consultation
Highest precision
Maximum safety
Space and weight savings

Technical details

Product type​SAG090SAG110
Technical data
Ratio6061
Nominal torqueNm70120
Max. acceleration torqueNm150250
Emergency stop torqueNm375625
Max. input speedrpm42003600
Dimensions
Outer diametermm90110
Lengthmm55.559.6
Hollow shaft diametermm3141
Weightkg1.52.5
Torsional rigidity and bearing
Ct21 1)Nm/arcmin | 103 Nm/rad35 | 12070 | 240
K3 1)Nm/arcmin | 103 Nm/rad24 | 8342 | 144
K2 1)Nm/arcmin | 103 Nm/rad23 | 7940 | 138
K1 1)Nm/arcmin | 103 Nm/rad17 | 5830 | 103
Max. tilting momentNm150250
Accuracy
Hysteresis lossarcmin0.50.5
Lost motionarcmin0.30.3
Transmission accuracyarcmin 1.5 1.5
Repeat accuracyarcmin+- 0.1+- 0.1
1) Torsional rigidity:
Ct21: Average increase of the hysteresis in a range of 50 to 100% of Tmax
K1: Average increase of the hysteresis in a range below 10 Nm for SAG090 and below 15 Nm for SAG110
K2: Average hysteresis gradient in the range between 10 Nm and 25 Nm for SAG090 and between 15 and 50 Nm for SAG110
K3: Average increase of the hysteresis in a range over 25 Nm for SAG090 and over 50 Nm for SAG110

The unit Nm/arcmin can be converted into 104 Nm/rad using a factor of 0.3438.

Contact us

Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.

info@wittenstein-us.com

1 630 540-5300
To the contact form

Galaxie® in miniature compared to usual strain wave gearboxes

Zero-Backlash over complete Lifetime
+ 30 % higher torque density
+ 50 % bigger hollow shaft
3-times higher torsional rigidity
